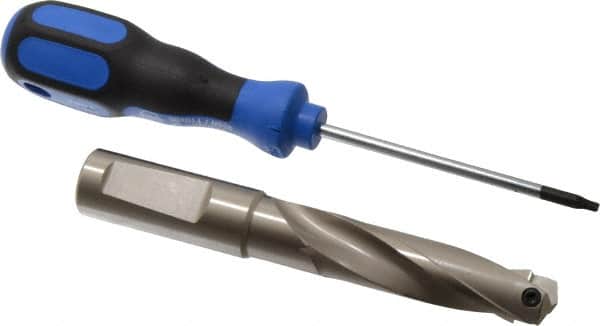

Guhring - 0.689 to 0.708" Diam, 57.4mm Max Depth, 3/4" Shank Diam, 84mm Flute, Replaceable Tip Drill - HT 800 WP Insert, Series 4107
Item #: 51484392
Brand: Guhring
Model #: 9041070175050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4107 |
| Minimum Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Diameter (Decimal Inch) | 0.7080 |
| Maximum Drill Depth (Decimal Inch) | 2.2598 |
| Maximum Drill Depth (mm) | 57.40 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | HT 800 WP |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 84.00 |
| Flute Length (Decimal Inch) | 3.3071 |
| Shank Length (mm) | 48.00 |
