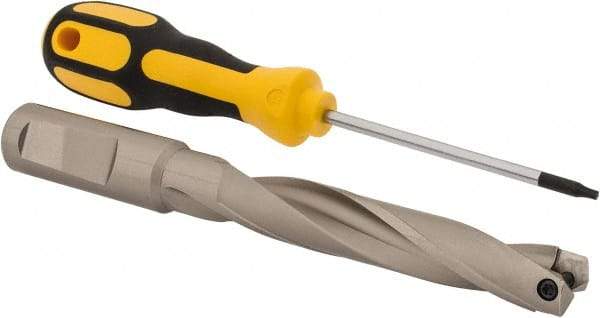

Guhring - 0.65 to 0.669" Diam, 88.1mm Max Depth, 19.05mm Shank Diam, 164mm OAL, Replaceable Tip Drill - HT 800 WP Insert, Series 4108
Item #: 51484012
Brand: Guhring
Model #: 9041080165050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4108 |
| Minimum Drill Diameter (Decimal Inch) | 0.6500 |
| Maximum Drill Diameter (Decimal Inch) | 0.6690 |
| Maximum Drill Depth (Decimal Inch) | 3.4685 |
| Maximum Drill Depth (mm) | 88.10 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | HT 800 WP |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 164.00 |
| Overall Length (Decimal Inch) | 6.4567 |
| Shank Length (Decimal Inch) | 1.8900 |
