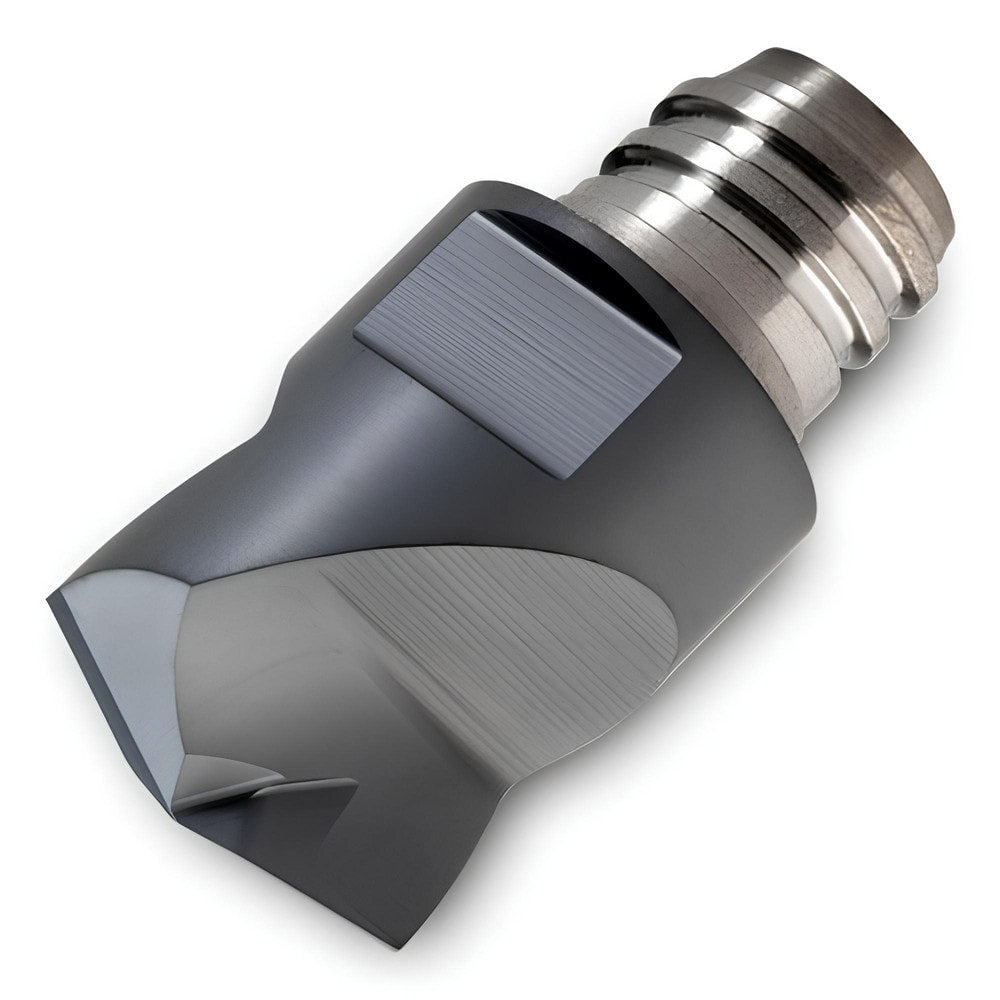

Brand: Ingersoll Cutting Tools / Part #: 2931591
Item #: 88075783
Brand: Ingersoll Cutting Tools
Model #: 2931591
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Diameter (Decimal Inch) | 0.5000 |
| Point Angle | 145.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2005 |
| Cutting Direction | Right Hand |
| Series | 45Z_RA |
| Coating Process | PVD |
| Height (Decimal Inch) | 0.650000 |
| Head Length (Decimal Inch) | 0.6500 |
| Drill Point Angle | 145 |
| Flute Type | Helical |
| Insert Holding Method | Screw-On |
| ISO Number | 45Z-5001T6RA72 IN2005 |
| Coolant Through | No |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Flute Length (mm) | 16.51 |
| Point Type | NC Spot |
| Spiral Type | Regular |
| Style | 45Z_RA |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 145 |
| Number Of Flutes | 2 |
