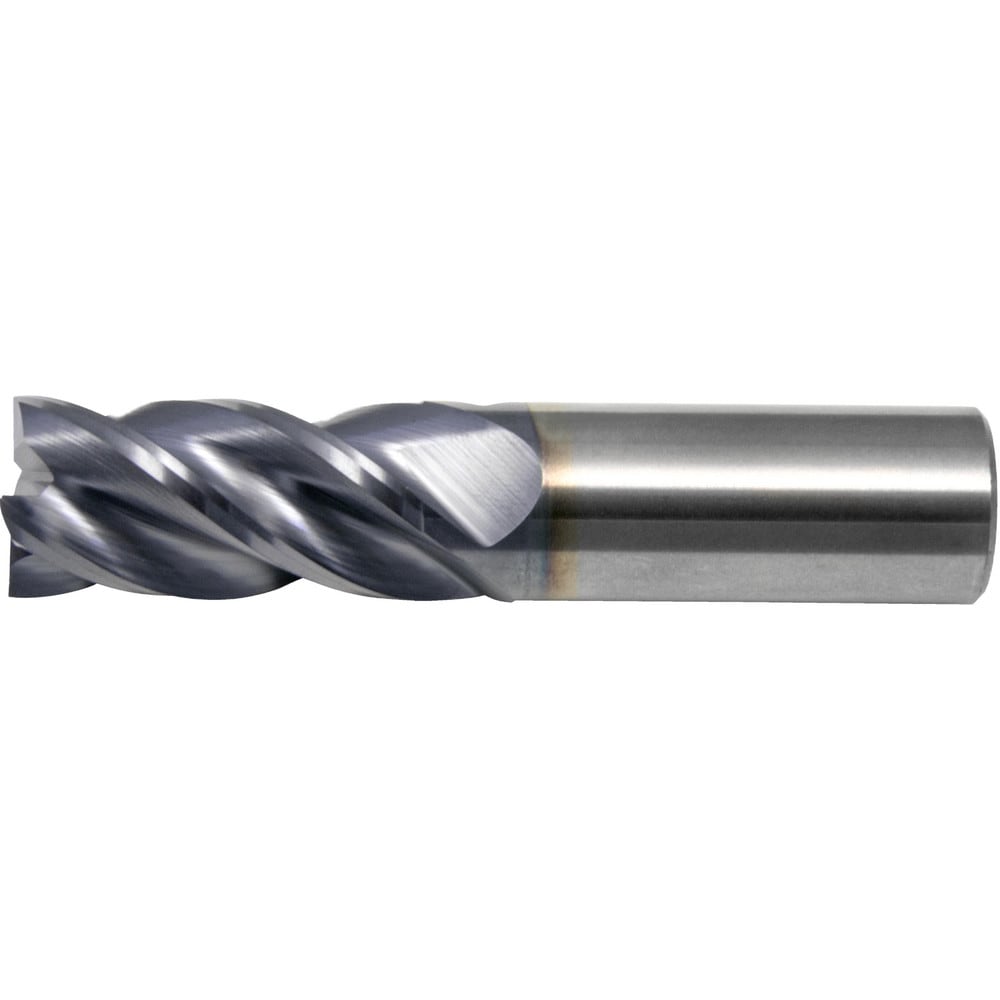

Corner Radius End Mill: 1" Dia, 2-1/4" LOC, 0.25 mm Radius, 4 Flute, Solid Carbide
Item #: 65100687
Brand: Cleveland
Model #: C80092
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (mm) | 25.40 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 57.15 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AP/MAX |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.25 |
| Overall Length (mm) | 127.00 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 5.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Regular |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Primary Workpiece Material | High-Temperature Alloy; Stainless Steel; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Submicron |
| Series | CEM-V-4R-TA |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (mm) | 25.40 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 57.15 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AP/MAX |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.25 |
| Overall Length (mm) | 127.00 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 5.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Regular |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Primary Workpiece Material | High-Temperature Alloy; Stainless Steel; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Submicron |
| Series | CEM-V-4R-TA |
| MSC Part # | 65100687 |
| Mfr Part # | C80092 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
