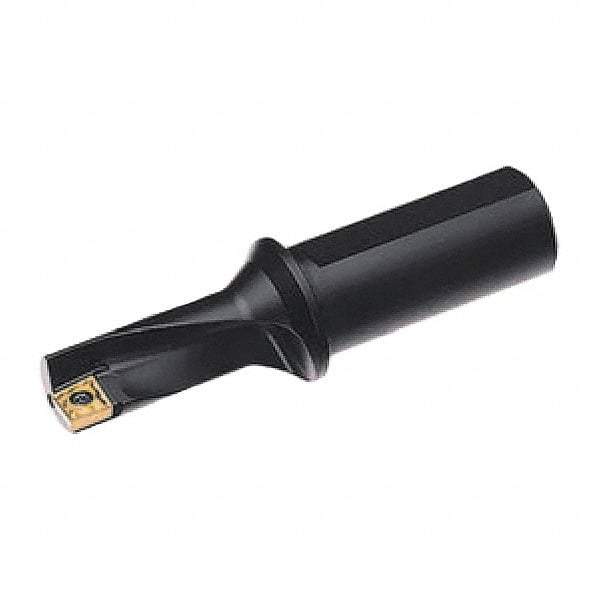

Allied Machine and Engineering - 1.26" Max Drill Depth, 4xD, 8mm Diam, Indexable Insert Drill - 1 Insert, 8mm Shank Diam, Straight Shank
Item #: 51323111
Brand: Allied Machine and Engineering
Model #: 11065200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 8.00 |
| Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Depth (Decimal Inch) | 1.2600 |
| Shank Type | Straight |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Cutting Direction | Left Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Insert Size (Decimal Inch) | 0.1570 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.3270 |
| Overall Length/Projection (Decimal Inch) | 2.2440 |
| Flute Length (Decimal Inch) | 1.2600 |
| Shank Length (Decimal Inch) | 0.9840 |
| Radius (Decimal Inch) | 0.0080 |
| Series | EcoCut Classic |
