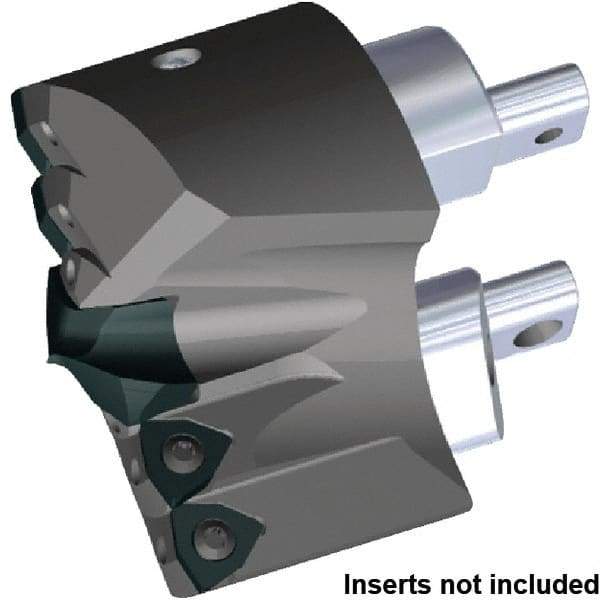

Kennametal - Series KSEM Plus, Head Connection FDS80, 88.9mm Max Diam Interchangeable Pilot Drill Head - KSEMP4000HPGM Pilot Drill, 40mm Pilot Drill Diam, 5 Nonpilot Inserts, 54.34mm Head Length
Item #: 51266989
Brand: Kennametal
Model #: 5397554
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS80 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (mm) | 88.90 |
| Maximum Drill Diameter (Decimal Inch) | 3.5000 |
| Pilot Drill Diameter (mm) | 40.00 |
| Pilot Drill Diameter (Decimal Inch) | 1.5748 |
| Number of Non-Pilot Inserts | 5 |
| Pilot Drill Style | KSEMP4000HPGM |
| Head Length (mm) | 54.34 |
| Head Length (Decimal Inch) | 2.1400 |
| Drill Head Style | A1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp; Screw |
| Head Length to Pilot Tip (Decimal Inch) | 2.1400 |
| Head Length to Pilot Tip (mm) | 54.34 |
