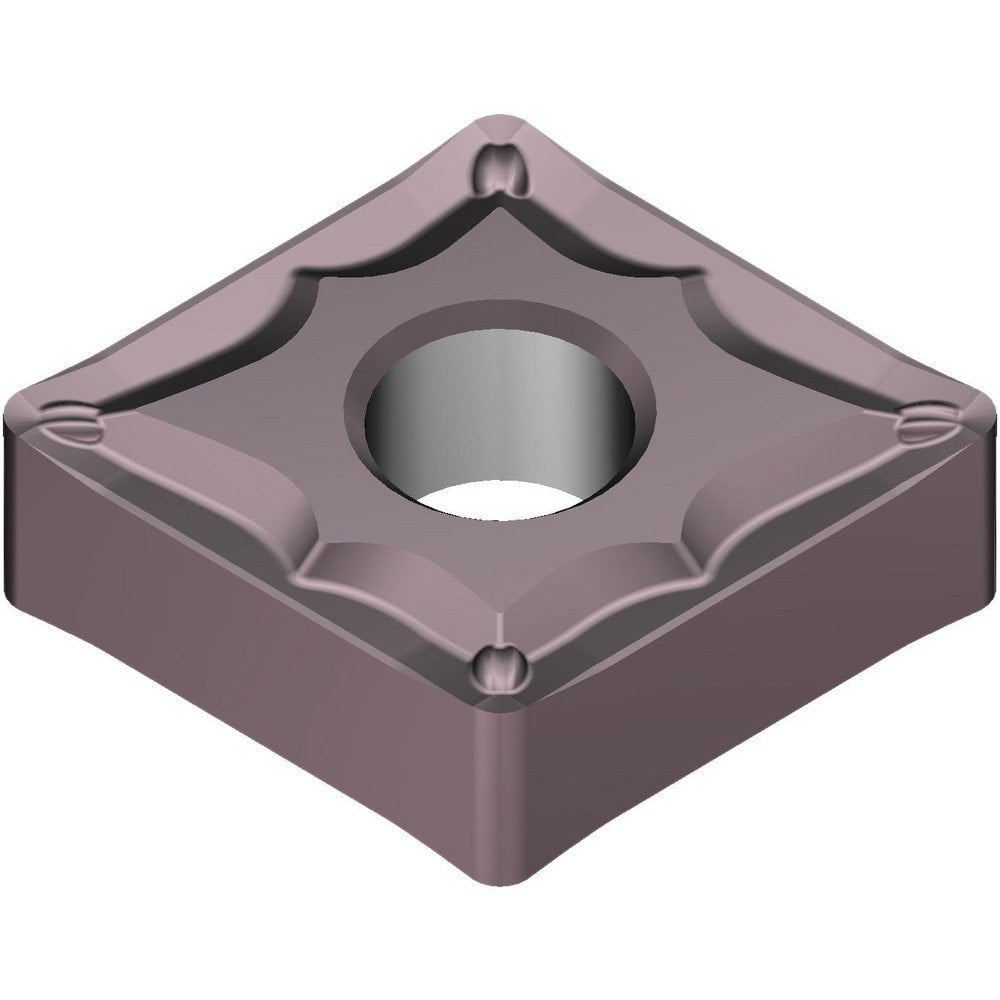

Turning Insert: CNMG430.5ESU AC6040M, Carbide
Item #: 15529258
Brand: Sumitomo
Model #: 196DBWM
Product Specifications
| ANSI Insert Code | CNMG430.5 |
| ISO Insert Code | CNMG120402 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80 |
| Manufacturer Grade | AC6040M |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | AC6000M |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | CNMG120402N-SU |
| Manufacturers Catalog Number | CNMG430.5ESU-AC6040M |
| Material Grade | M40; M30 |
| Chip Breaker | ESU |
| ANSI Size Code | 430.5 |
| ISO Size Code | 120402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 430.5 |
