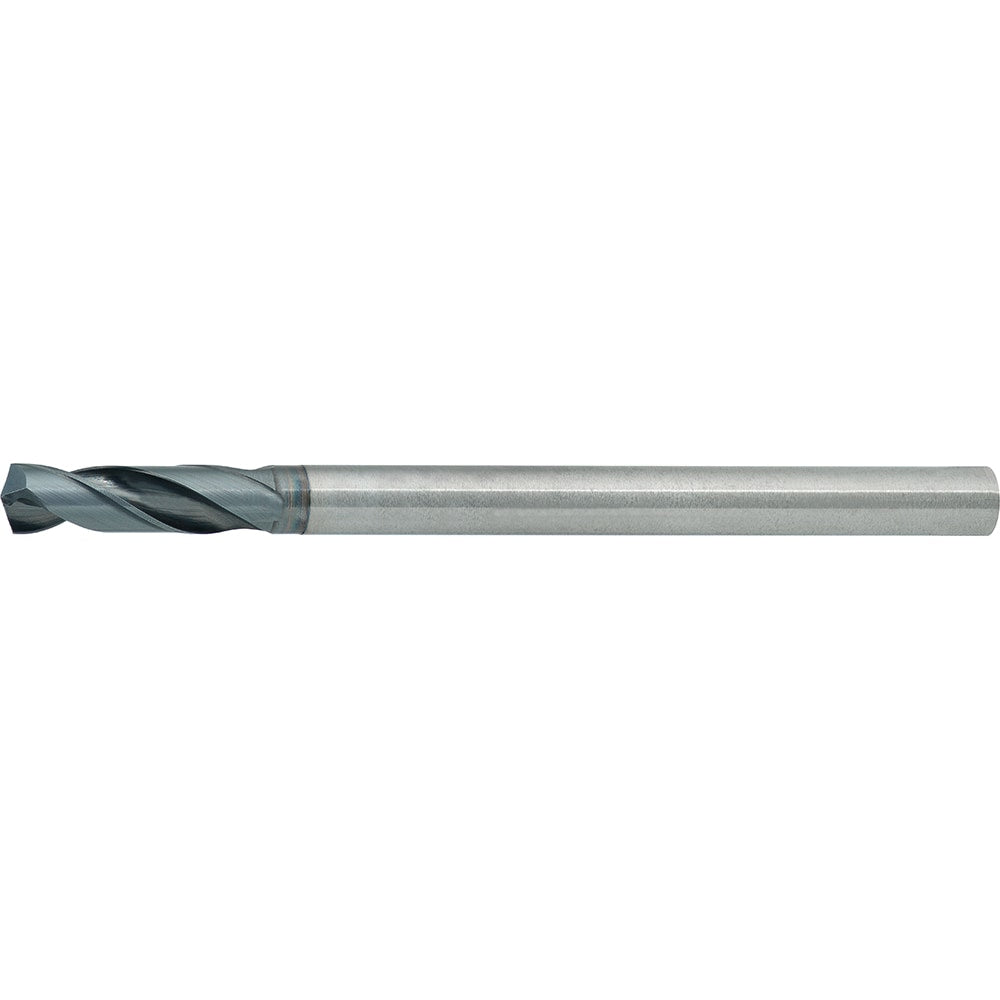

Jobber Drill: 10.30 mm Dia, 140 deg Point, Solid Carbide
Item #: 05928098
Brand: Mitsubishi
Model #: 10609194
Product Specifications
| Drill Bit Size (mm) | 10.30 |
| Drill Bit Size (Decimal Inch) | 0.4055 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | X-Thinned |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | Yes |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Overall Length (mm) | 115.90 |
| Overall Length (Decimal Inch) | 4.5630 |
| Flute Length (mm) | 71.90 |
| Flute Length (Decimal Inch) | 2.8307 |
| Series | DWAE |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (mm) | 11 |
| Maximum Drilling Depth (Decimal Inch) | 1.6969 |
| Maximum Drilling Depth (mm) | 43.10 |
| Shank Length (mm) | 42 |
| Shank Length (Decimal Inch) | 1.6535 |
| Drill Point Length (mm) | 1.90 |
| Drill Point Length (Decimal Inch) | 0.0748 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Shank Type | Straight |
| Drill Bit Grade | High Precision; High Performance |
| Specification Designation | ISO |
| UNSPSC Code | 23241634 |
