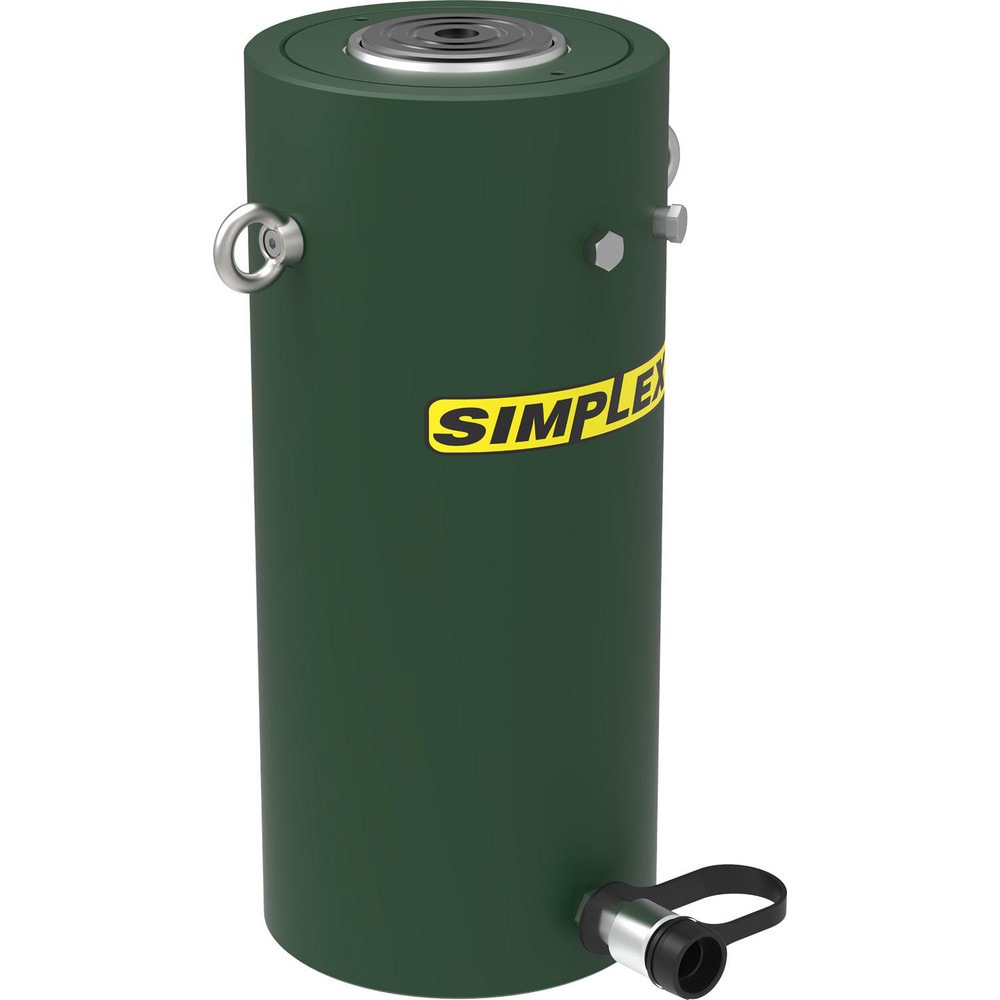

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 158; Stroke Length: 11.81; Oil Capacity: 368.09; Cylinder Bore Diameter (Decimal Inch): 6.30; Cylinder Effective Area: 1; Lowered Height: 18.83
Item #: 72560311
Brand: Enerpac
Model #: RCG15012
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 158 |
| Stroke Length | 11.81 |
| Oil Capacity | 368.09 |
| Cylinder Bore Diameter (Decimal Inch) | 6.30 |
| Cylinder Effective Area | 1 |
| Lowered Height | 18.83 |
| Retracted Length | 19 |
| Extended Length | 30.64 |
| Cushion Type | No Cushion |
| Bore Diameter | 6.3000 |
| Outside Diameter | 8.27 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 3.7 |
| Series | RCG |
| Maximum Height (Inch) | 30.6400 |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 158 |
| Stroke Length | 11.81 |
| Oil Capacity | 368.09 |
| Cylinder Bore Diameter (Decimal Inch) | 6.30 |
| Cylinder Effective Area | 1 |
| Lowered Height | 18.83 |
| Retracted Length | 19 |
| Extended Length | 30.64 |
| Cushion Type | No Cushion |
| Bore Diameter | 6.3000 |
| Outside Diameter | 8.27 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 3.7 |
| Series | RCG |
| Maximum Height (Inch) | 30.6400 |
| UNSPSC Code | 27121602 |
| MSC Part # | 72560311 |
| Mfr Part # | RCG15012 |
| Country of Origin Country of Origin is subject to change | Spain |
