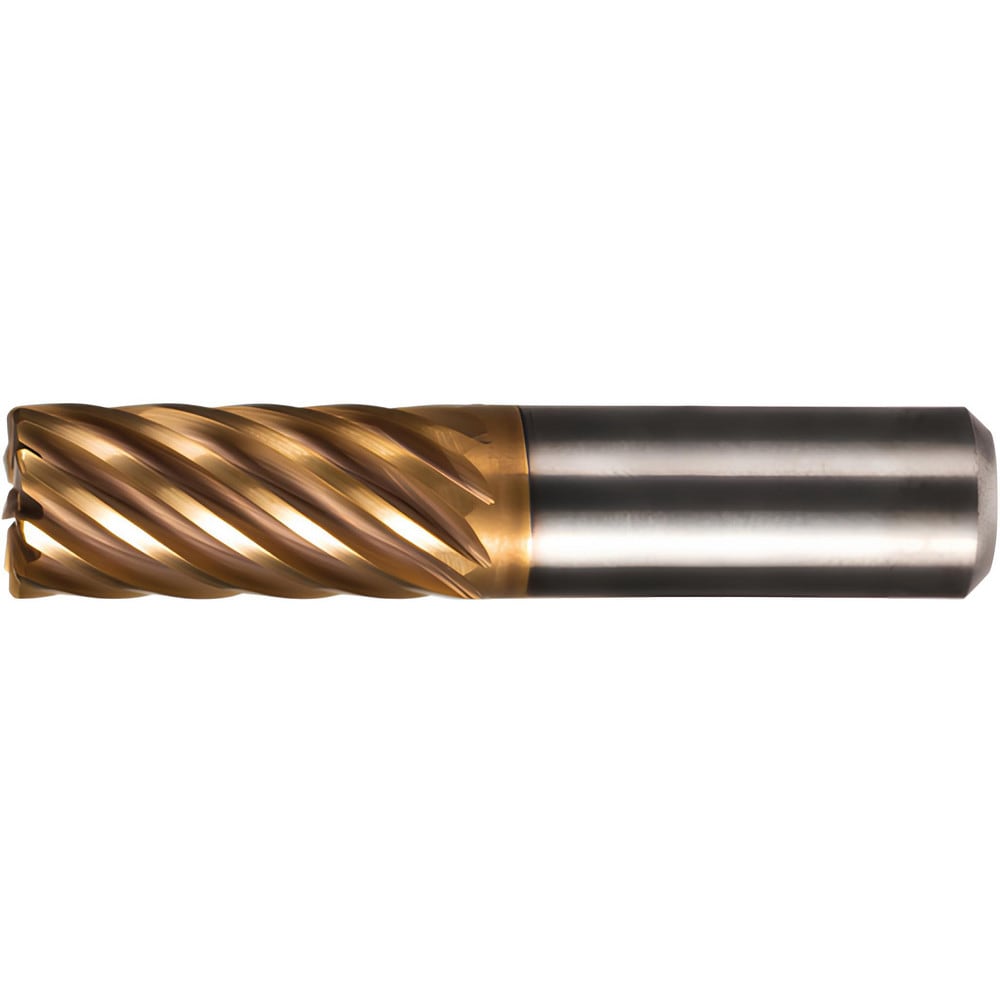

Corner Radius End Mill: 1" Dia, 2" LOC, 0.0150" Radius, 19 Flute, Solid Carbide
Item #: 67276022
Brand: Kennametal
Model #: 7078248
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 19 |
| Length of Cut (Inch) | 2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Pitch | Super Close |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Reach Length (Decimal Inch) | 2.6500 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; M |
| Material Grade | Submicron |
| Series | RSMF |
| Material Application | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HPMC High PerFormance Milling Chucks-CV Form B/AD; ER Single Angle Standard Collets; TT HT HPV-HSK Form F (Pin) |
| Helix Style | High |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 19 |
| Length of Cut (Inch) | 2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Pitch | Super Close |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Reach Length (Decimal Inch) | 2.6500 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; M |
| Material Grade | Submicron |
| Series | RSMF |
| Material Application | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HPMC High PerFormance Milling Chucks-CV Form B/AD; ER Single Angle Standard Collets; TT HT HPV-HSK Form F (Pin) |
| Helix Style | High |
| MSC Part # | 67276022 |
| Mfr Part # | 7078248 |
| Country of Origin Country of Origin is subject to change | Israel |
