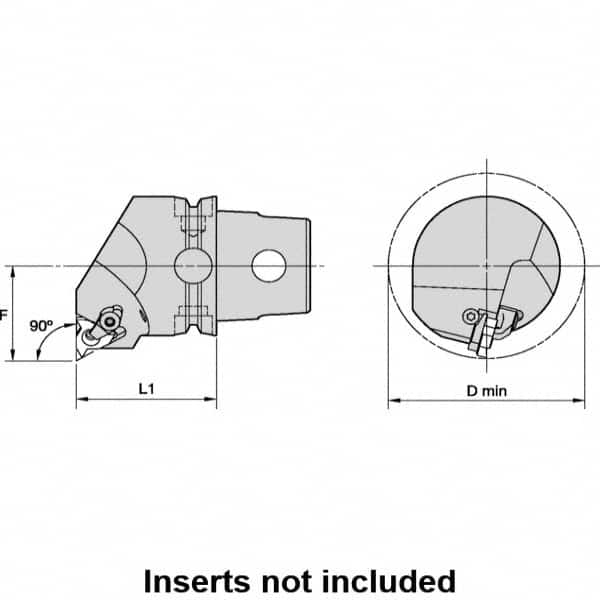

Kennametal - Insert Style LT 16NR, 40mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size KM40TS, 27mm Center to Cutting Edge, Series LT Threading
Item #: 51220085
Brand: Kennametal
Model #: 3950832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40TS |
| Series Name | LT Threading |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Head Length/Projection (mm) | 40.00 |
| Head Length/Projection (Decimal Inch) | 1.5748 |
| Insert Style | LT 16NR |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 54.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.1260 |
| Maximum Hole Depth (mm) | 40.00 |
| Maximum Hole Depth (Decimal Inch) | 1.5748 |
