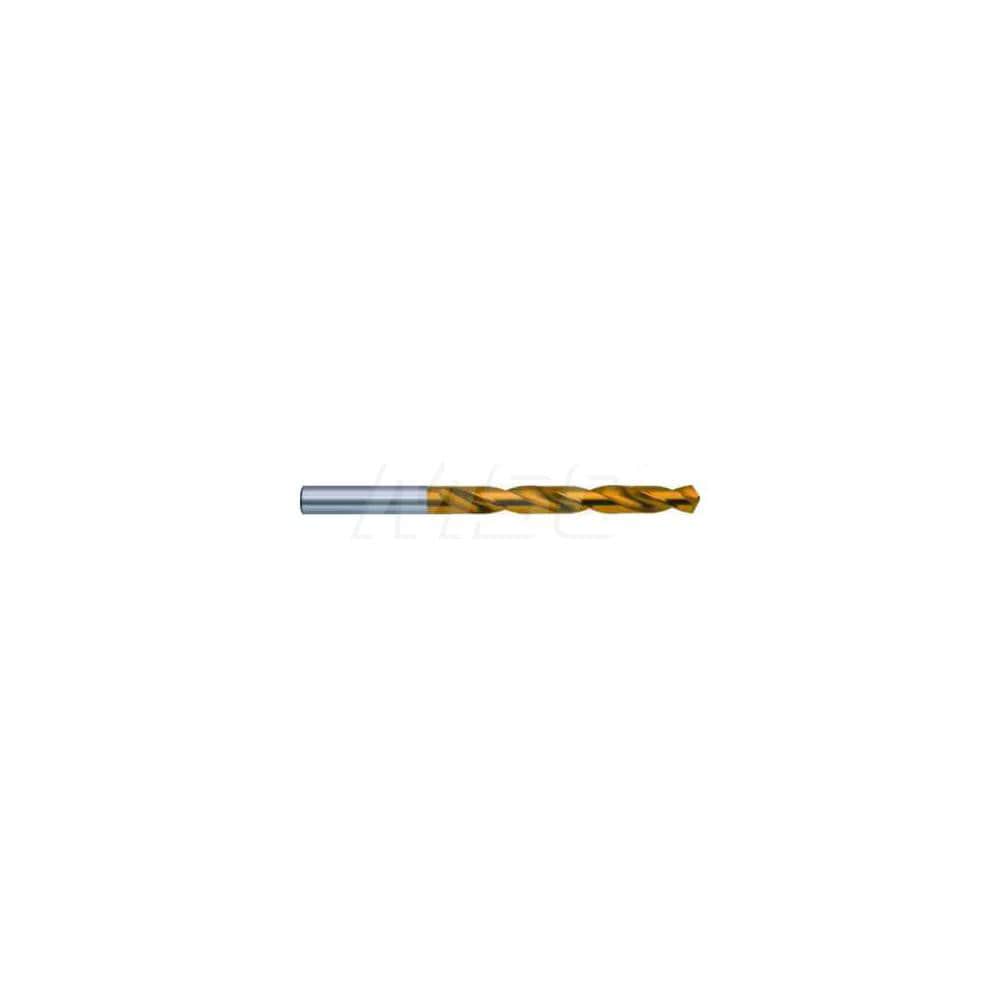

Jobber Drill: #21, 118 deg Point, Cobalt
Item #: 55078638
Brand: Guhring
Model #: 9055190040400
Product Specifications
| Drill Bit Size (Wire) | #21 |
| Drill Bit Size (Decimal Inch) | 0.1590 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; M; N |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Spiral Type | Regular |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6929 |
| Series | 5519 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 4.04 |
| Maximum Drilling Depth (Decimal Inch) | 1.4540 |
| Maximum Drilling Depth (mm) | 36.94 |
| Shank Length (mm) | 32 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Wire) | #21 |
| Drill Bit Size (Decimal Inch) | 0.1590 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; M; N |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Spiral Type | Regular |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6929 |
| Series | 5519 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 4.04 |
| Maximum Drilling Depth (Decimal Inch) | 1.4540 |
| Maximum Drilling Depth (mm) | 36.94 |
| Shank Length (mm) | 32 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 55078638 |
| Mfr Part # | 9055190040400 |
| Country of Origin Country of Origin is subject to change | Germany |
