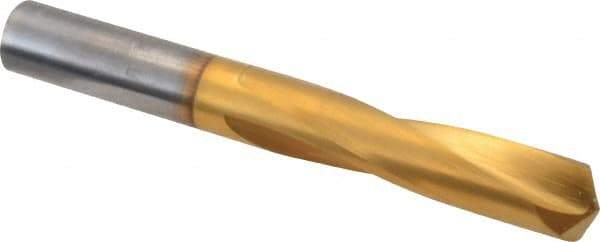

Atrax - 27/64" 135° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiN Finish, Right Hand Cut, 2" Flute Length, 3-3/8" OAL, Split Point, Straight Shank
Item #: 51011682
Brand: Atrax
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4200 |
| Drill Bit Size (Inch) | 27/64 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 2 |
| Flute Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Point Type | Split Point |
| Spiral Type | Slow Spiral |
| Shank Length (Inch) | 1-3/8 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Web Thinning | Web-Thinned |
| Through Coolant | No |
| Material Grade | C2 |
