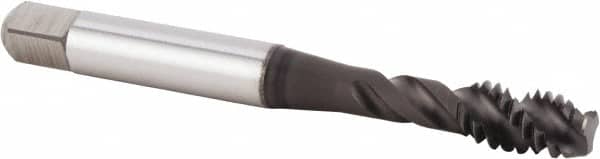

Kennametal - 1/4-28 UNF 3 Flute 3BX Modified Bottoming Spiral Flute Tap - Powdered Metal, TiN/CrC/C Finish, 63.25mm OAL, Right Hand Flute, Right Hand Thread, Series T630
Item #: 50830660
Brand: Kennametal
Model #: 4116786
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/4-28 |
| Chamfer | Modified Bottoming |
| Class of Fit | 3BX |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | TiN/CrC/C |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.4900 |
| Overall Length (mm) | 63.25 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.4300 |
| Thread Length (mm) | 10.92 |
| Flute Type | Fast Spiral |
| Series/List | T630 |
| Neck Length (Decimal Inch) | 0.5700 |
| Tapping Depth (Decimal Inch) | 1.0000 |
| Tapping Depth (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Shank Diameter (mm) | 6.48 |
| Shank Length (Decimal Inch) | 1.2087 |
| Shank Length (mm) | 31 |
| Material Application | Non-Ferrous Materials; Stainless Steel |
