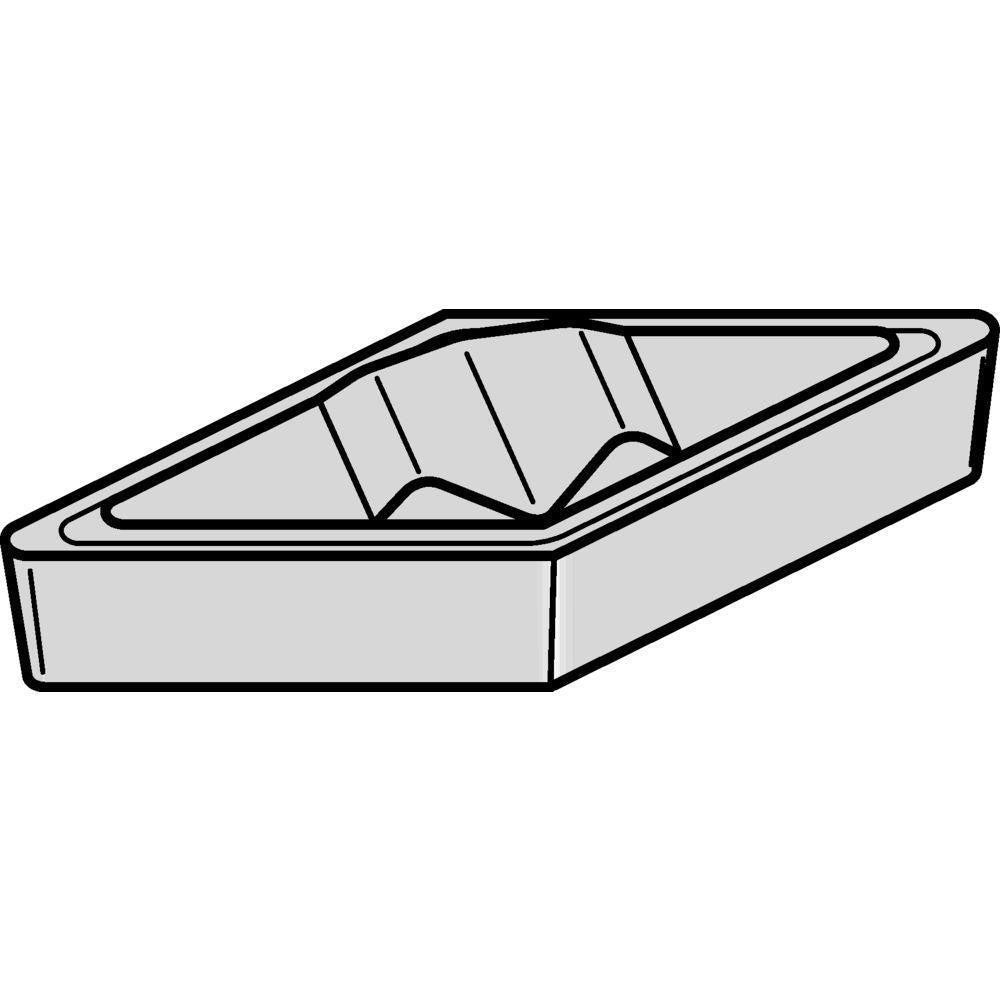

Profiling Insert: VPGR334 KCU10B, 0.1875" Thickness
Item #: 82160151
Brand: Kennametal
Model #: 7096336
Product Specifications
| Insert Style | VPGR |
| Insert Size Code | 334 |
| Insert Material | Carbide |
| Width (Inch) | 3/16 |
| Manufacturer Grade | KCU10B |
| Thickness (Inch) | 3/16 |
| Insert Height (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.7600 |
| Insert Height (mm) | 4.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.2179 |
| Maximum Depth of Cut (mm) | 5.53 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0625 |
| Corner Radius (mm) | 1.60 |
| Included Angle | 35.00 |
| Relief Angle | 8.000 |
| Coating Process | PVD |
| Number Of Cutting Edges | 4 |
| Iso Code | VCGR160416 |
| Rake Angle | 8.000 |
| Coating/Finish | AlTiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (mm - 2 Decimals) | 4.77 |
| UNSPSC Code | 23242105 |
