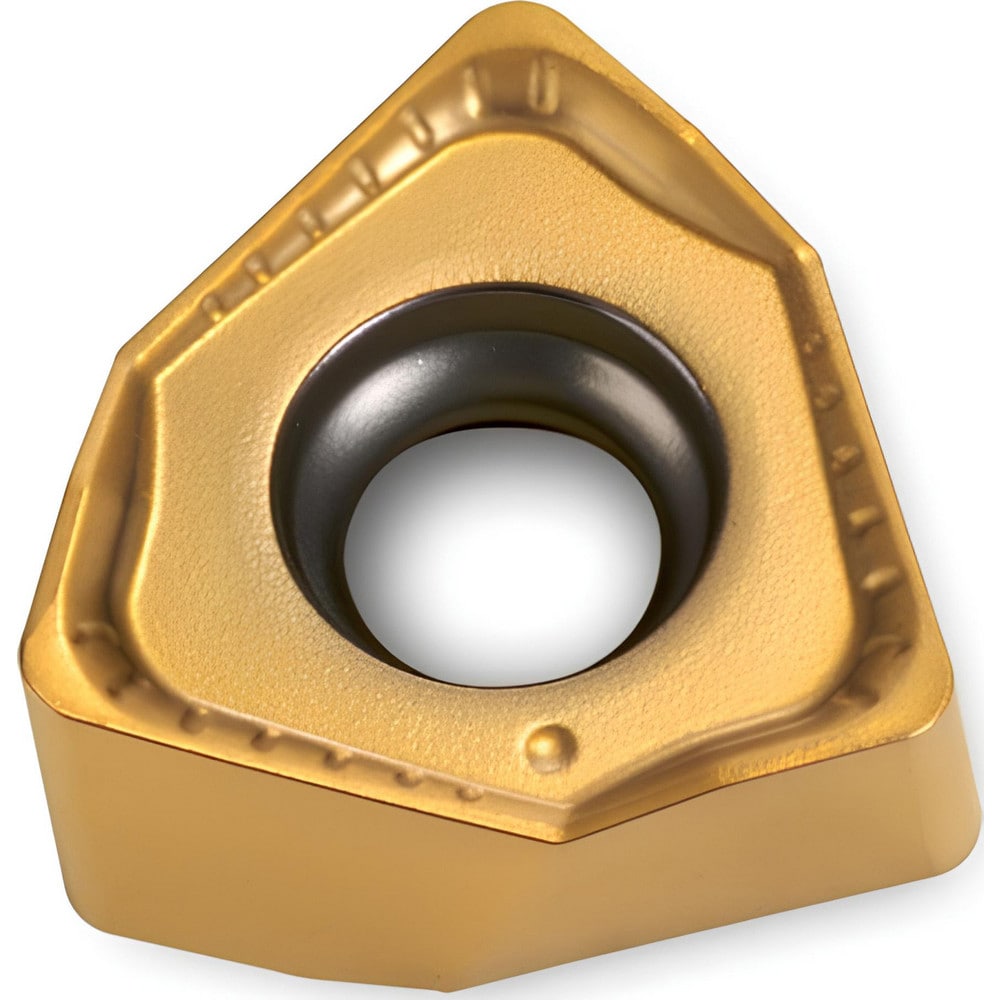

Milling Insert: WNGU090408R IN2530, Solid Carbide
Item #: 92259076
Brand: Ingersoll Cutting Tools
Model #: 5813428
Product Specifications
| Insert Style | WNGU |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | IN2530 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 090408 |
| Material Grade | Coarse Grain |
| Inscribed Circle (Decimal Inch) | 0.3650 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
| Series | WNGU |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2400 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | WNGU090408R IN2530 |
| Iso Code | WNGU090408R |
| Standards | ISO; ANSI |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 5813428 |
| Cutter Series Compatibility | DJ5F; 1DJ1F |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.3650 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4800 |
