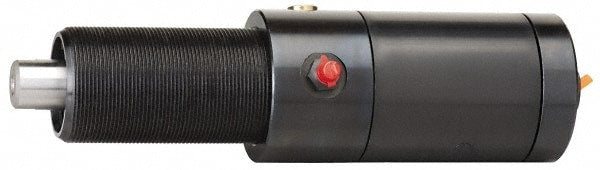

Clamp Intensifier Cylinders; Operating Stroke Length (Inch): 1/4; Pressure Ratio: 30:1; Maximum Operating Pressure (psi): 125.00; Minimum Operating Pressure (psi): 25.00; Maximum Output Force (Lb.): 3700.00; Body Diameter (Inch): 2-1/2; Body Thread Size:
Item #: 82511122
Brand: Jergens
Model #: 60598
Product Specifications
| Operating Stroke Length (Inch) | 1/4 |
| Pressure Ratio | 30:1 |
| Maximum Operating Pressure (psi) | 125.00 |
| Minimum Operating Pressure (psi) | 25.00 |
| Maximum Output Force (Lb.) | 3700.00 |
| Body Diameter (Inch) | 2-1/2 |
| Body Thread Size | 1-7/8-16 |
| Body Thread Length (Inch) | 3-7/32 |
| Housing Diameter (Inch) | 2-1/2 |
| Overall Length (Inch) | 9-5/16 |
| Length Above Housing (Inch) | 3-15/16 |
| Shaft Projection Length (Decimal Inch) | 0.7188 |
| Shaft Projection Length (Inch) | 23/32 |
| Shaft Width/Diameter (Inch) | 3/4 |
| Shaft Thread Size | 5/16-24 |
| Shaft Thread Depth (Inch) | 1/2 |
| End Port Thread Size | 9/16-18 |
| End Projection Width/Diameter (Inch) | 7/8 |
| UNSPSC Code | 40151566 |
| Country of Origin | UNITED STATES |
