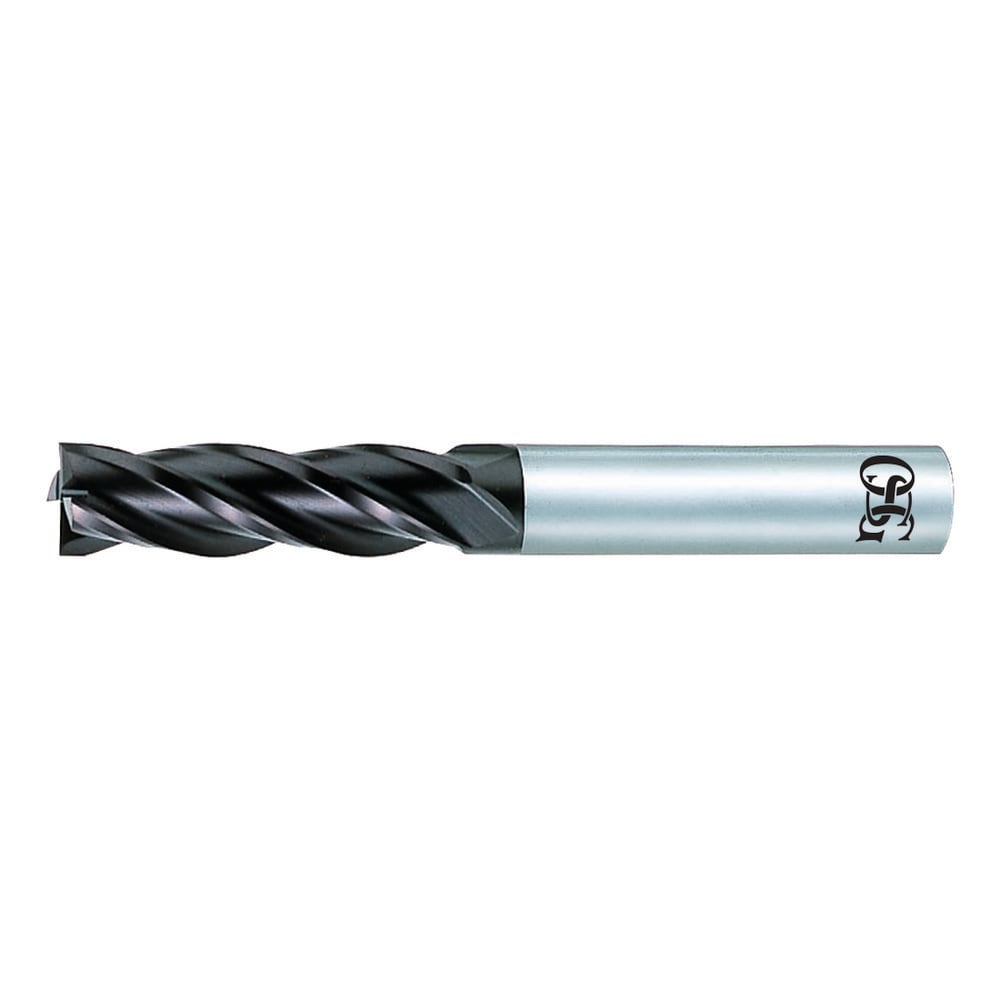

Square End Mill: 4 Flute, Solid Carbide
Item #: 79644142
Brand: OSG
Model #: 36421212
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.0000 |
| Length of Cut (Inch) | 2 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Single Or Double End | Single |
| Coating/Finish Family | WXL |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; H; K; M |
| Coating/Finish | WXL |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Length Type | Long |
| Mill Diameter Tolerance | +0 / -0.0012 |
| Series | 3642 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
