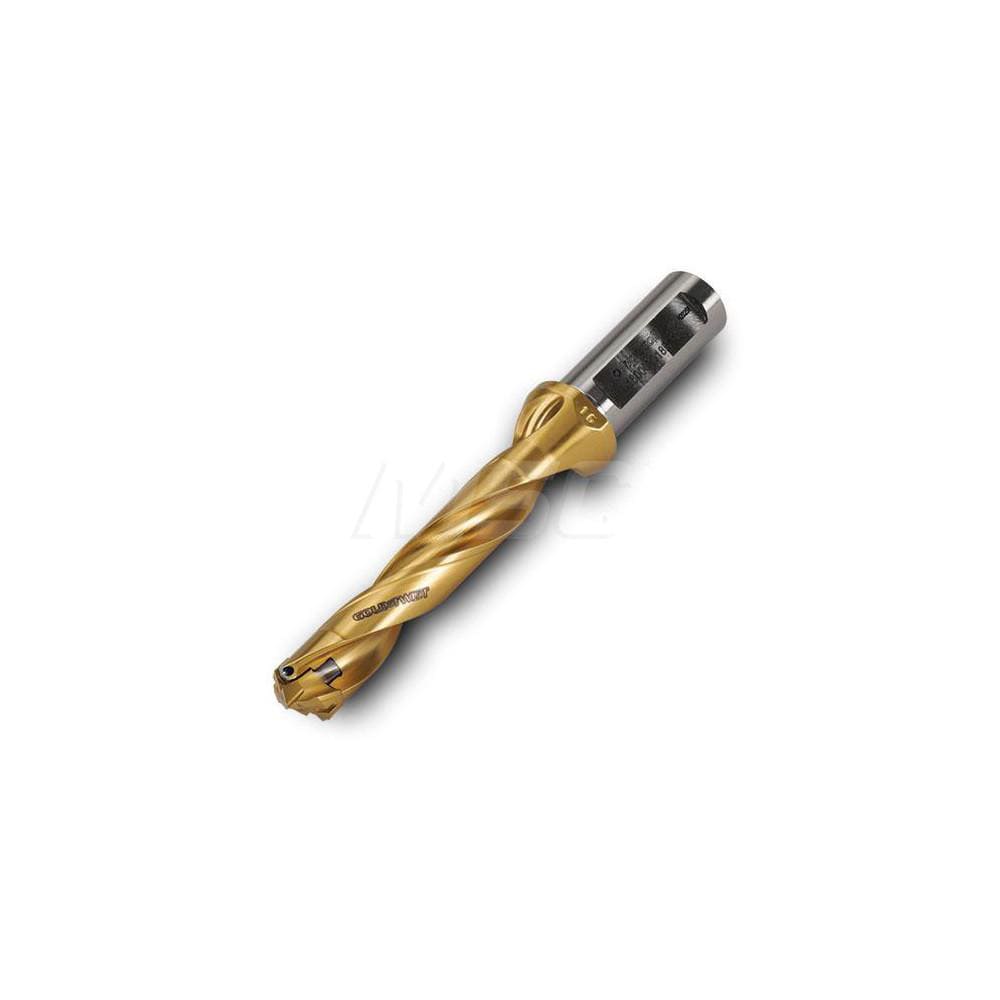

Replaceable-Tip Drill: 0.4134 to 0.4291" Dia, 2.09" Max Depth, 5/8" Flatted Shank
Item #: 89219547
Brand: Ingersoll Cutting Tools
Model #: 3212278
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (Decimal Inch) | 0.4291 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.0900 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 10.5 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Overall Length (Decimal Inch) | 4.346 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (Decimal Inch) | 2.0900 |
| Body Length (Decimal Inch) | 2.456 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
