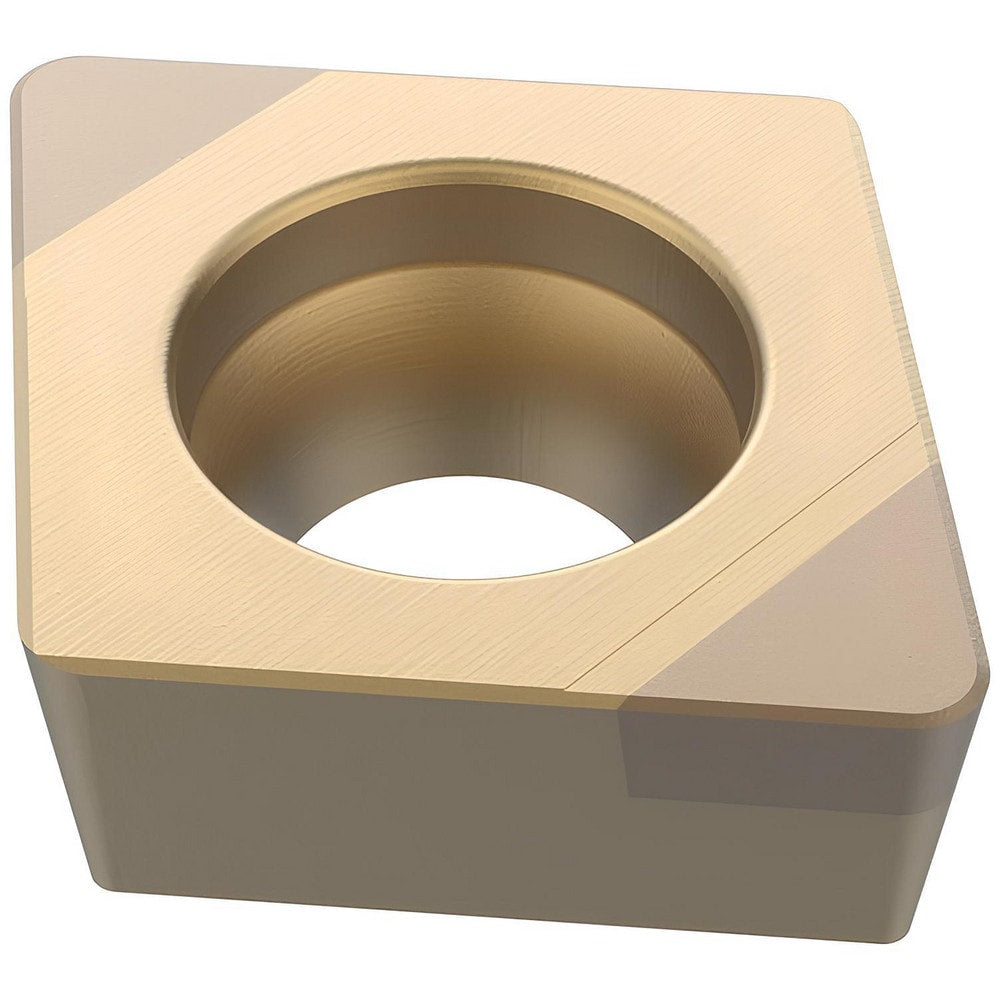

Turning Insert: CCGW32.52S-00625-L1-B, PCBN
Item #: 82760695
Brand: Seco
Model #: 10199692
Product Specifications
| ANSI Insert Code | CCGW32.52 |
| ISO Insert Code | CCGW09T308 |
| Relief Angle | 7 |
| Insert Style | CCGW |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | CH1050 |
| Coating/Finish | Nanolaminate |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CCGW |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | PCBN |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Hardened Materials (H) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material Code | H |
| Iso Code | CCGW09T308S-01525-L1-B |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 10199692 |
| Material Grade | CH1050 |
| Single or Multi Tipped | Multi Tipped |
| Lead Angle | 80 |
| Coating Classification | PVD |
| Chip Breaker | Flat Top |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CCGW32.52S-00625-L1-B |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| Tip Length (Decimal Inch) | 0.0940 |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
| Country of Origin | Sweden |
