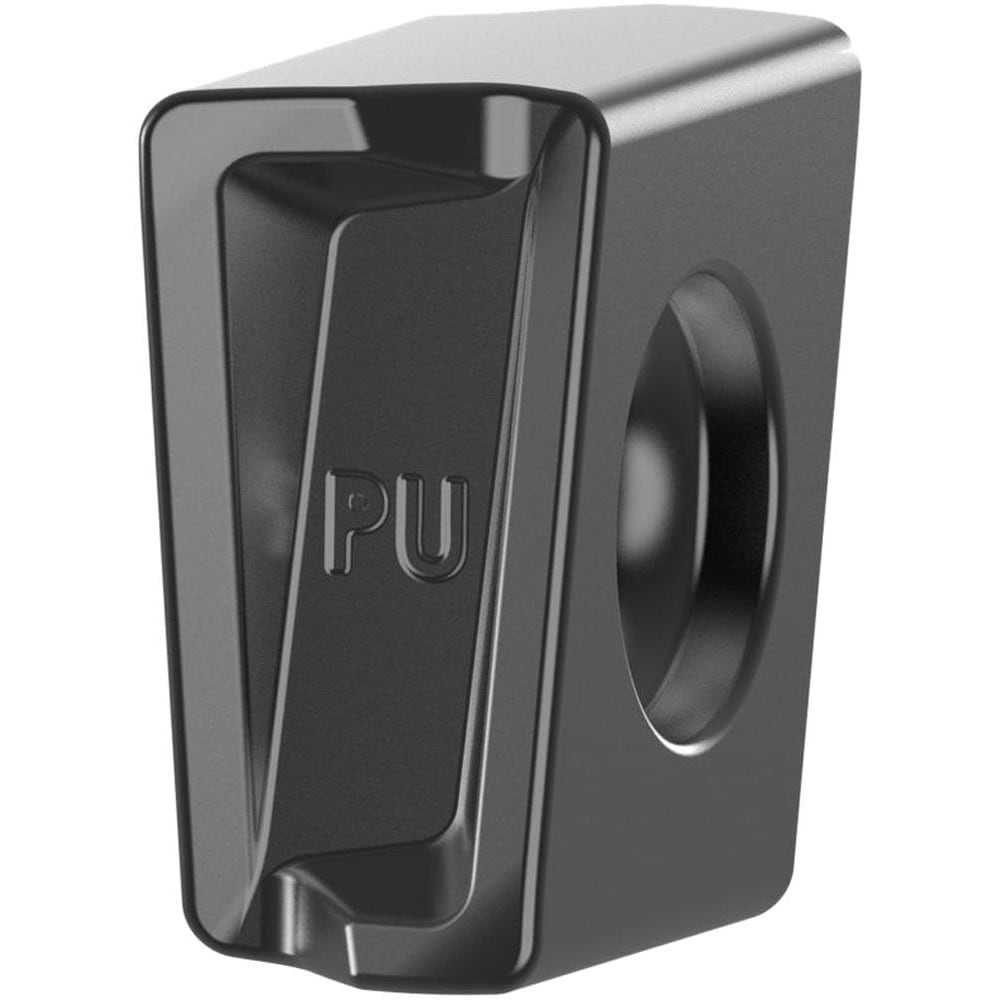

Milling Insert: LNPQ120608ERPUKT4 KCPK30, Carbide
Item #: 84756386
Brand: Kennametal
Model #: 7159708
Product Specifications
| Insert Style | Tangential |
| Insert Size | 12 |
| Insert Material | Carbide |
| Insert Shape | Tangential |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Corner Radius (mm) | 0.79 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Thickness (mm) | 6.3500 |
| Coating/Finish | MT-TiCN |
| Relief Angle | 0.000 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4782 |
| Maximum Depth of Cut (mm) | 12.15 |
| Series | Mill 4-12KT |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.9000 |
| Hole Diameter (Decimal Inch) | 0.1929 |
| Cutting Edge Effective Length (mm) | 13.15 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5176 |
| Rake | Positive |
| Ansi Code | LNPQ120608ERPUKT4 |
| Iso Code | LNPQ120608ERPUKT4 |
| Rake Angle | 12.000 |
| Manufacturers Catalog Number | LNPQ120608ERPUKT4 KCPK30 |
| Cutter Series Compatibility | M412KT |
| Chip Breaker | PU |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 13.15 |
| Width (Decimal Inch - 4 Decimals) | 0.5176 |
| Width (mm - 2 Decimals) | 13.15 |
| Length (Decimal Inch - 4 Decimals) | 0.5176 |
| Country of Origin | Germany |
