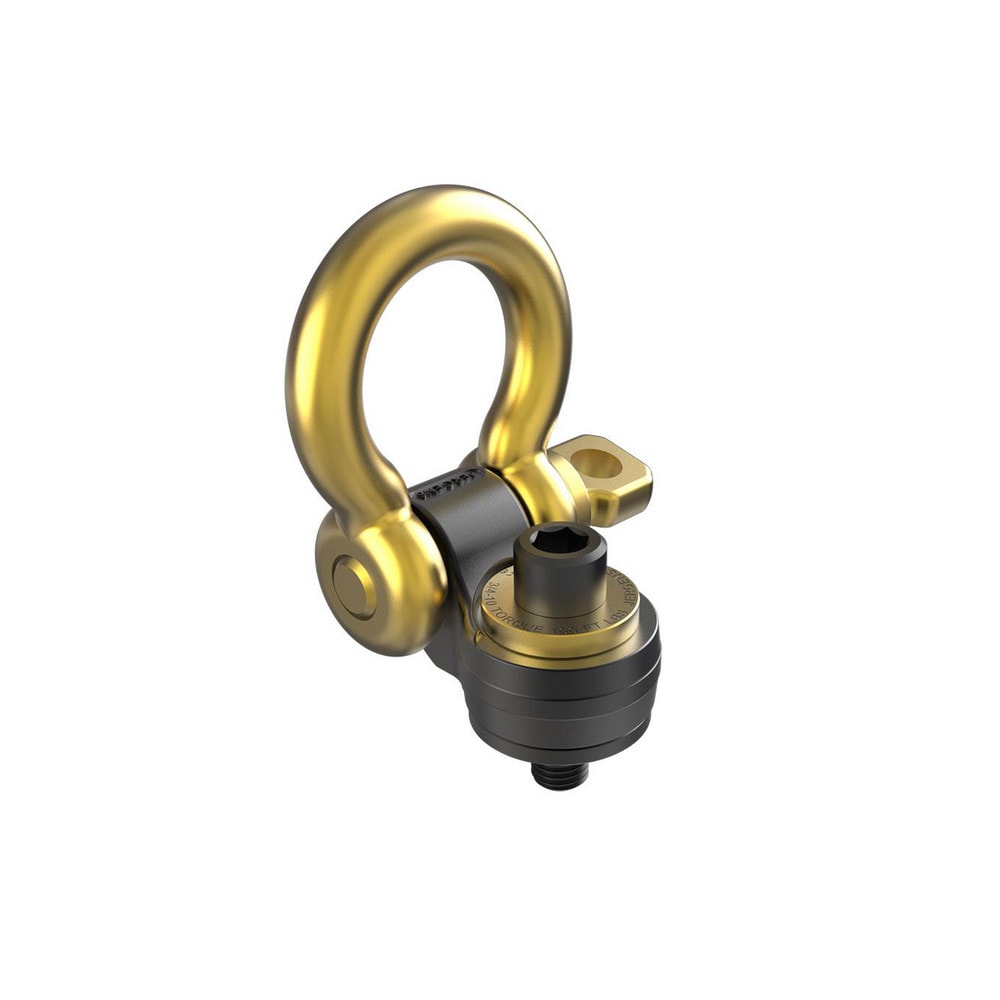

Flip-Flop Hoist Ring: Screw-On, 7100 lb Capacity
Item #: 79049631
Brand: Jergens
Model #: 47916
Product Specifications
| Hoist Ring Type | Flip-Flop |
| Load Capacity (Lbs) | 7100 |
| Thread Size | 1-8 |
| Radius (mm) | 33.34 |
| Radius (Decimal Inch) | 1.3125 |
| Thread Length (Inch) | 1-1/2 |
| Thread Length (Decimal Inch) | 1.5000 |
| Ring Height (mm) | 117.48 |
| Ring Height (Decimal Inch) | 4.6250 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 22.23 |
| Ring Thickness | 0.8750 |
| Overall Length (mm) | 197.9000 |
| Overall Length (Decimal Inch) | 7.7900 |
| Ring External Width (Inch) | 4.3750 |
| Ring External Width (mm) | 111.00 |
| Ring Internal Width (mm) | 66.67 |
| Ring Internal Width (Inch) | 2.6250 |
| Torque | 311.838 |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Screw-On |
| Number Of Mounting Holes | 1.000 |
| Standards | ASME B30.26 and MIL-STD-209 |
| Ring Opening (Decimal Inch) | 2.63 |
| Flange Diameter (Decimal Inch) | 2.32 |
| Ring Outside Diameter (Decimal Inch) | 2.1875 |
| Ring Width (mm) | 111.00 |
| UNSPSC Code | 24101600 |
| Pin Length (Decimal Inch) | 3.7500 |
| Ring Width (Inch) | 4-3/8 |
| Hex Size (Inch) | 3/4 |
| Ring Width (Decimal Inch) | 4.3750 |
| Mounting Surface Diameter (Decimal Inch) | 1.00 |
| Clevis Height (mm) | 22 |
| Head/Holder Diameter (Fractional Inch) | 1-3/16 |
| Clevis Width (Inch) | 5-5/8 |
| Mounting Surface Diameter (mm) | 24.00 |
| Flange Diameter (mm) | 59.00 |
| Clevis Height (Inch) | 7/8 |
| Pin Diameter (mm) | 22.2000 |
| Clevis Width (mm) | 143 |
| Ring Opening (mm) | 66.67 |
| Country of Origin | UNITED STATES |
