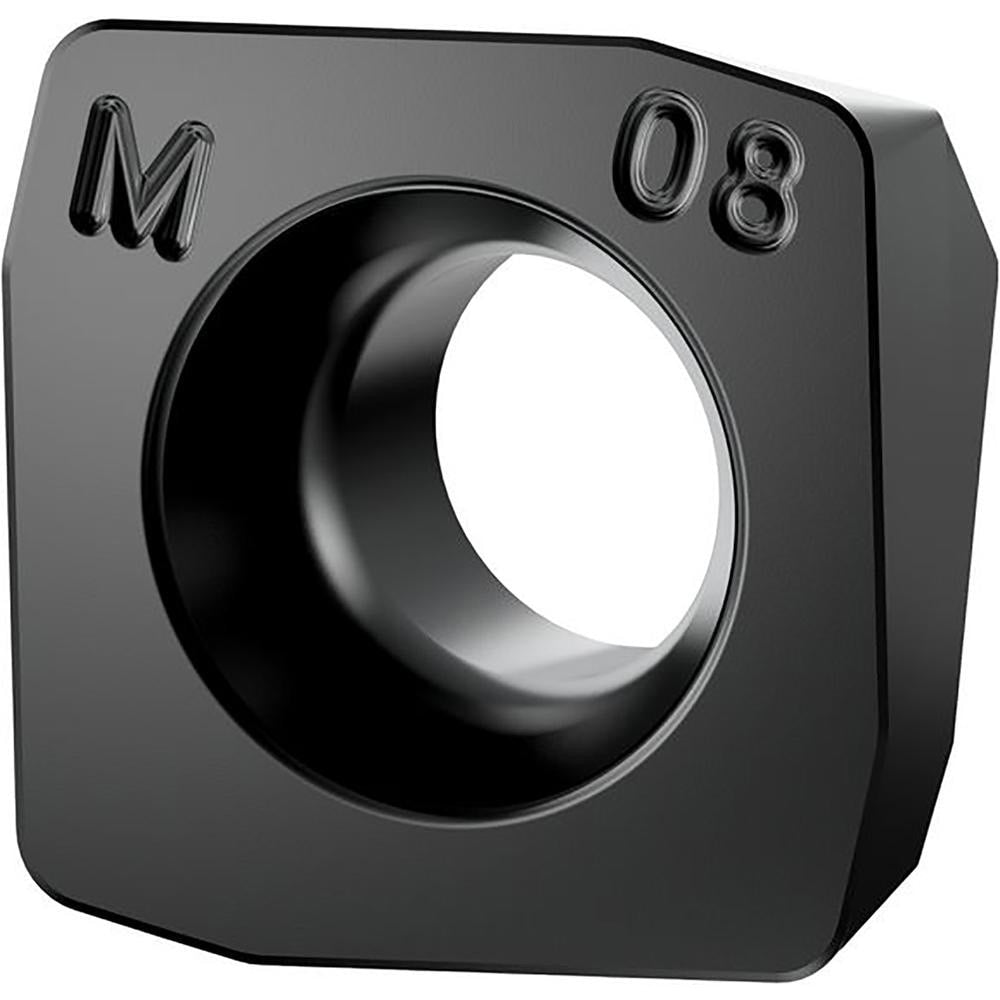

Milling Insert: XDPW090408SRM KCPK30, Carbide
Item #: 84755917
Brand: Kennametal
Model #: 7143525
Product Specifications
| Insert Style | Square |
| Insert Size | 9 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Thickness (mm) | 4.7600 |
| Coating/Finish | MT-TiCN |
| Relief Angle | 11.000 |
| Inscribed Circle (Decimal Inch) | 0.3630 |
| Inscribed Circle (mm) | 9.22 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Maximum Depth of Cut (mm) | 1.50 |
| Series | 7792 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.2000 |
| Hole Diameter (Decimal Inch) | 0.1654 |
| Cutting Edge Effective Length (mm) | 9.22 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3630 |
| Rake | Positive |
| Ansi Code | XDPW090408SRM |
| Iso Code | XDPW090408SRM |
| Rake Angle | 15.000 |
| Manufacturers Catalog Number | XDPW090408SRM KCPK30 |
| Cutter Series Compatibility | 7792VX09 |
| Chip Breaker | M |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 9.22 |
| Width (Decimal Inch - 4 Decimals) | 0.3630 |
| Width (mm - 2 Decimals) | 9.22 |
| Length (Decimal Inch - 4 Decimals) | 0.3630 |
| Country of Origin | UNITED STATES |
