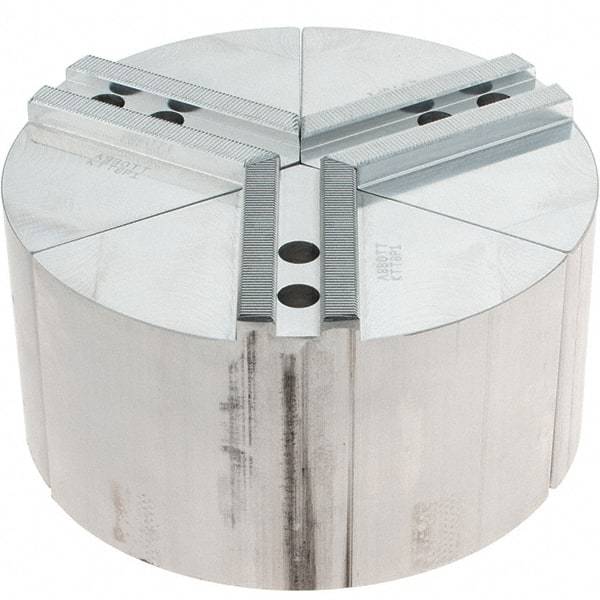

Abbott Workholding Products - 8" Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Round Soft Lathe Chuck Jaw - 3 Jaw, Aluminum, 0.9843" Btw Mount Hole Ctrs, 8" Wide, 4" High, 12mm Fastener
Item #: 50487123
Brand: Abbott Workholding Products
Model #: KTT8P1
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Round |
| Material | Aluminum |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 8.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 8 |
| Overall Height (Inch) | 4 |
| Groove Width (Decimal Inch) | 0.5512 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.9843 |
| Tongue Width (Decimal Inch) | 0.0000 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | 12.00 |
| Fastener Size (Decimal Inch) | 0.4724 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 203.20 |
| Overall Width/Diameter (Inch) | 8 |
| Overall Width/Diameter (Decimal Inch) | 8.0000 |
| Material Grade | 6061 |
