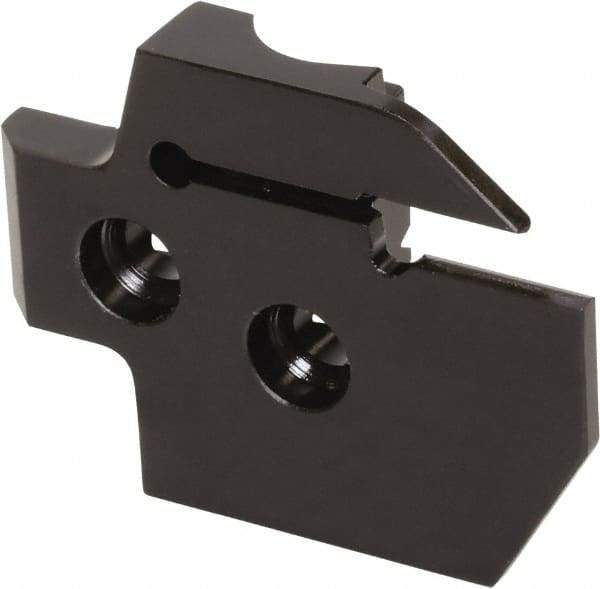

Kyocera - 0.09" Groove Width, 0.795" Max Depth of Cut, Left Hand Cut, KGD Indexable Grooving Blade - GD..20N-030.., GD..20N-040.. Insert Style
Item #: 50479880
Brand: Kyocera
Model #: 8834776
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.0900 |
| Maximum Depth of Cut (Decimal Inch) | 0.7950 |
| Blade Style | KGD |
| Blade Height (mm) | 41.50 |
| Blade Height (Decimal Inch) | 1.6339 |
| Blade Overall Length (Decimal Inch) | 2.0900 |
| Manufacturers Catalog Number | KGDL3T20C |
| Insert Style | GD..20N-030..; GD..20N-040.. |
| Complete Insert Compatibility | GDFM 3020N-030DM; GDFM 3020N-030GM; GDFM 4020N-040DM; GDFM 4020N-040GM; GDFM 5020N-040DM; GDFM 5020N-040GM; GDFM 6020N-040DM; GDFM 6020N-040GM; GDFMS 3020N-030DM; GDFMS 4020N-040DM; GDFMS 5020N-040DM; GDFMS 6020N-040DM |
| MSC/Manufacturer Number | 8834776 |
