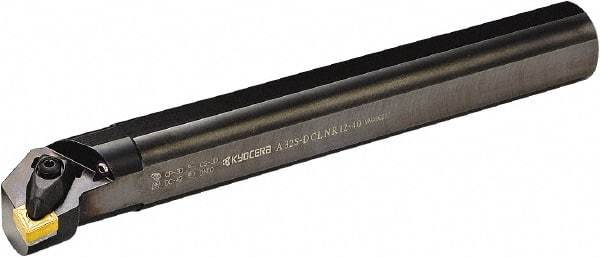

Kyocera - 1-1/4" Min Bore Diam, 12" OAL, 1" Shank Diam, DCLN Indexable Boring Bar - 1.575" Max Bore Depth, CNMG 43.. Insert, Screw Clamping Holding Method
Item #: 50479575
Brand: Kyocera
Model #: 8605951
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | DCLN |
| Minimum Bore Diameter (Decimal Inch) | 1.2500 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.5750 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | CNMG 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Rake Angle | -12 |
| Coolant Hole Thread Size (Inch) | 1/8 |
| Complete Insert Compatibility | CNMG 431MQ; CNMG 431MS; CNMG 431PP; CNMG 431PQ; CNMG 432MS; CNMG 432PG; CNMG 432PQ |
| Toolholder Material | Steel |
