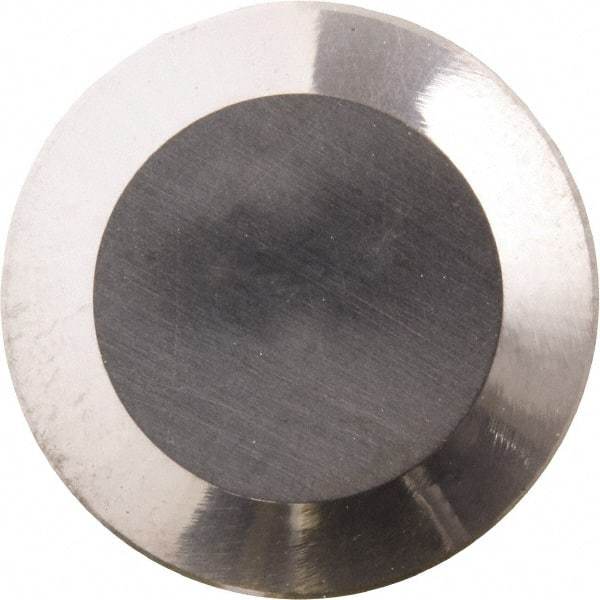

Kyocera - RCGX24T004 Grade KS6040 Ceramic Turning Insert - Uncoated, Round, 1/4" Thick
Item #: 50478528
Brand: Kyocera
Model #: 8838267
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 24T004 |
| Material | Ceramic |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | KS6040 |
| Coating | Uncoated |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | RCGX24T00420 KS6040 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
