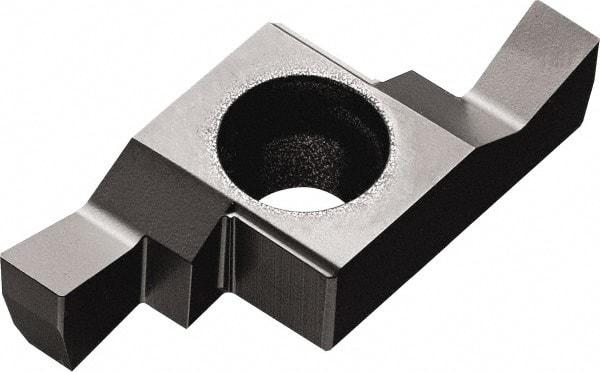

Kyocera - 500GE E Grade PR1025, 5mm Cutting Width Carbide Grooving Insert - 6.5mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius, TiCN Finish
Item #: 50469766
Brand: Kyocera
Model #: 8825696
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GE |
| Insert Size | 500 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Manufacturer's Grade | PR1025 |
| Coating | TiCN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.55 |
| Cutting Height (Decimal Inch) | 0.2185 |
| Relief Angle | 2 |
| Chipbreaker | E |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Coating Process | PVD |
| Overall Length (mm) | 21.66 |
| Overall Length (Decimal Inch) | 0.8528 |
| Series | Sige |
| Manufacturers Catalog Number | GEL500-020E |
| Overall Width (mm) | 9.54 |
| Overall Width (Decimal Inch) | 0.3756 |
