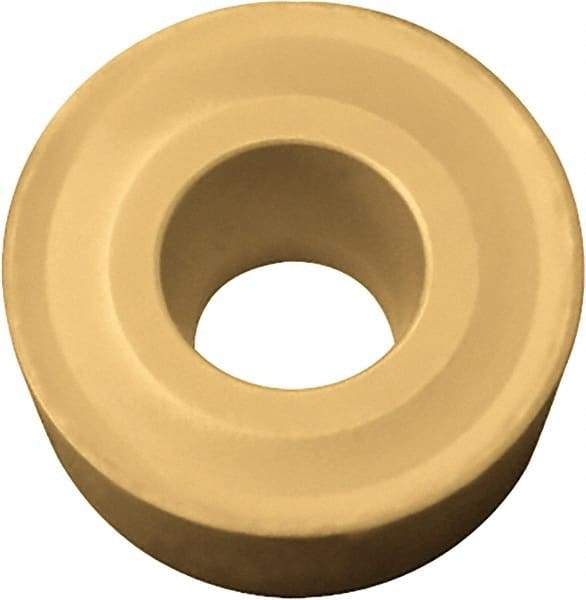

Kyocera - RCMX1204M0 Grade PV720 Cermet Turning Insert - TiCN (Megacoat Nano) Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 50464759
Brand: Kyocera
Model #: 8843162
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 1204M0 |
| Material | Cermet |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | PV720 |
| Coating | TiCN (Megacoat Nano) |
| Material Grade | Micrograin |
| Hole Diameter (mm) | 4.19 |
| Hole Diameter (Decimal Inch) | 0.1650 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | RCMX1204M0 PV720 |
| Primary Workpiece Material | P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
