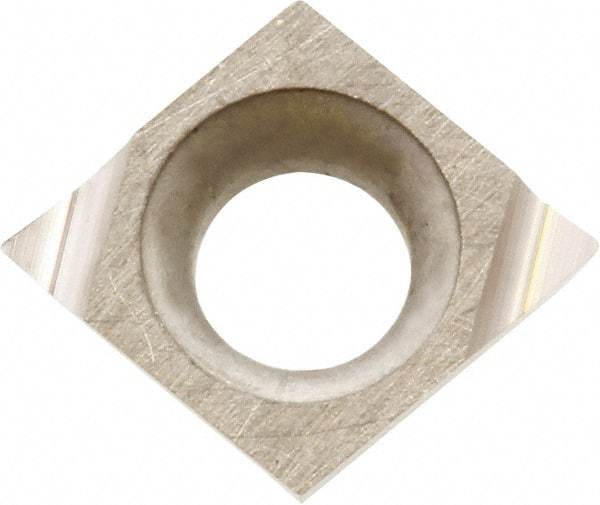

Kyocera - CCGT110905 F Grade PV90 Cermet Turning Insert - TiN Finish, 80° Diamond, 3.5052mm Inscr Circle, 1.397mm Thick, 0.2032mm Corner Radius
Item #: 50463009
Brand: Kyocera
Model #: 8800189
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 110905 |
| Material | Cermet |
| Inscribed Circle (mm) | 3.51 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Thickness (Decimal Inch) | 0.0550 |
| Thickness (mm) | 1.40 |
| Corner Radius (mm) | 0.2032 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | PV90 |
| Coating | TiN |
| Chip Breaker | F |
| Hole Diameter (mm) | 1.91 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| ISO Number | CCGT030102L-F |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCGT110905LF PV90 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
