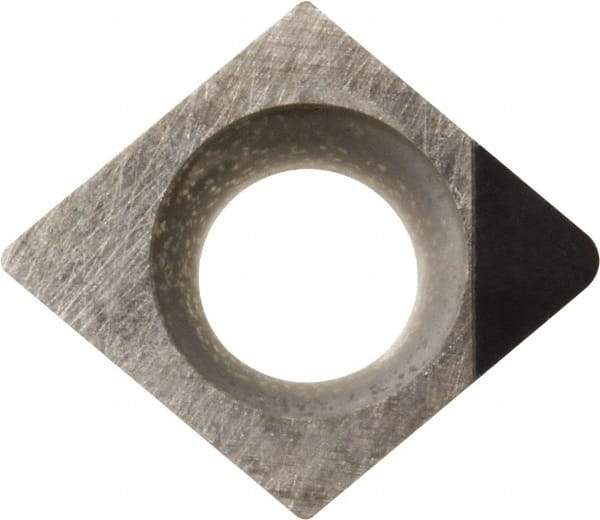

Kyocera - CCGW14111 Grade KPD010 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 80° Diamond, 4.2926mm Inscr Circle, 1.8034mm Thick, 1/64" Corner Radius
Item #: 50460088
Brand: Kyocera
Model #: 8805430
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CCGW |
| Insert Size | 14111 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 4.29 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Thickness (Decimal Inch) | 0.0710 |
| Thickness (mm) | 1.80 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KPD010 |
| Coating | Uncoated |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | CCGW040104 |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCGW14111 KPD010 |
| Primary Workpiece Material | S |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
