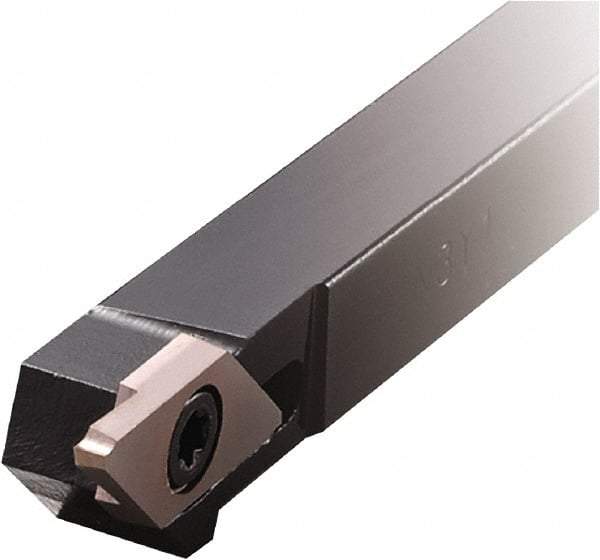

Kyocera - KTKFL, Left Hand Cut, TKF12R/L... Insert, Indexable Cutoff Toolholder - 6mm Max Depth of Cut, 10mm Shank Width, 10mm Shank Height, 120mm OAL
Item #: 50459650
Brand: Kyocera
Model #: 8835023
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Series | KTKF |
| Toolholder Style | KTKFL |
| Insert Compatibility | TKF12R/L... |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Shank Width/Diameter (mm) | 10.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3937 |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Through Coolant | No |
| Back of Bar to Cutting Edge (mm) | 10.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3937 |
| Head Height (mm) | 10.00 |
| Head Height (Decimal Inch) | 0.3937 |
| Height to Shank Top (mm) | 10.00 |
| Height to Shank Top (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | TKF12R/L 050-NB; TKF12R/L 050-NB-20DR; TKF12R/L 050-S; TKF12R/L 050-S-16DR; TKF12R/L 070-NB; TKF12R/L 070-NB-20DR; TKF12R/L 070-S; TKF12R/L 070-S-16DR; TKF12R/L 100-NB; TKF12R/L 100-S; TKF12R/L 100-S-16DR; TKF12R/L 100-T; TKF12R/L 100-T-16DR; TKF12R/L 125 |
