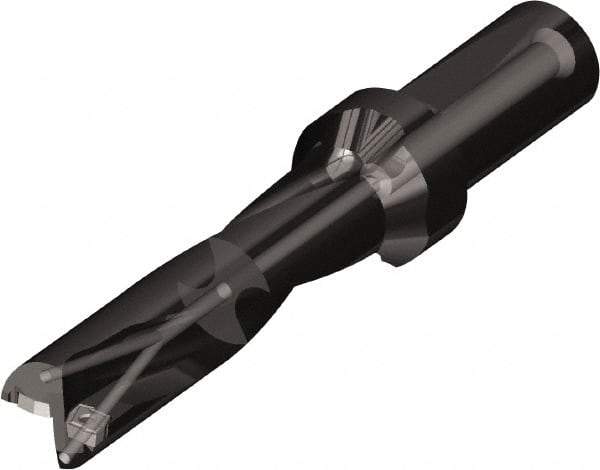

Kyocera - 159mm Max Drill Depth, 3xD, 53mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Whistle Notch Shank
Item #: 50458496
Brand: Kyocera
Model #: 8821072
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRZ |
| Drill Diameter (mm) | 53.00 |
| Drill Diameter (Decimal Inch) | 2.0866 |
| Maximum Drill Depth (mm) | 159.00 |
| Maximum Drill Depth (Decimal Inch) | 6.2598 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.7020 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.0866 |
| Maximum Drill Diameter (mm) | 53.00 |
| Overall Length/Projection (mm) | 260.00 |
| Overall Length/Projection (Decimal Inch) | 10.2362 |
| Insert Compatibility | ZCMT 150406SP; ZCMT 150408 |
| Body Length (Decimal Inch) | 7.5197 |
| Body Length (mm) | 191.00 |
| Shank Length (mm) | 69.00 |
| Shank Length (Decimal Inch) | 2.7165 |
| Collar Diameter (mm) | 60.00 |
| Collar Diameter (Decimal Inch) | 2.3622 |
| Series | Magic Drill |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
