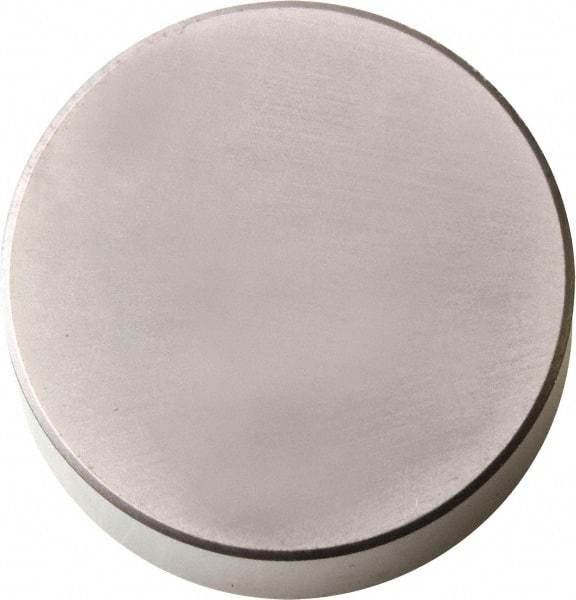

Kyocera - RNG65E001 Grade KS6030 Ceramic Turning Insert - Uncoated, Round, 3/4" Inscr Circle, 5/16" Thick
Item #: 50454990
Brand: Kyocera
Model #: 8842415
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RNG |
| Insert Size | 65E001 |
| Material | Ceramic |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Manufacturer's Grade | KS6030 |
| Coating | Uncoated |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | RNG65E001 KS6030 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Honed |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
