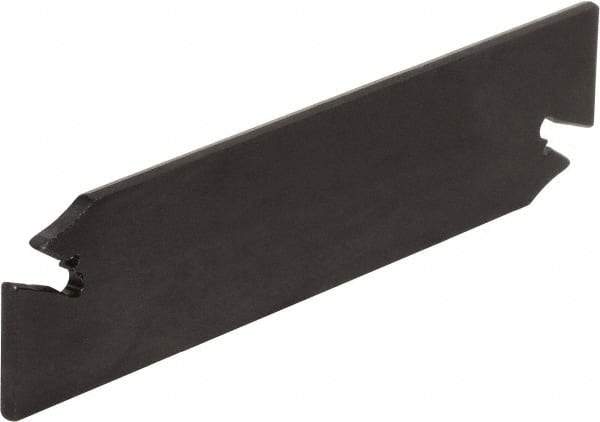

Kyocera - 1.0236" Blade Height, 0.1024" Blade Width, 4.3307" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - KTKB Blade, KTB-S Series
Item #: 50453752
Brand: Kyocera
Model #: 8801634
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 2.60 |
| Blade Width (Decimal Inch) | 0.1024 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | KTKB |
| Insert Style | TKN 3; TKN 3-P; TKR/L 3; TKR/L 3-P |
| Insert Width (mm) | 3.10 |
| Insert Width (Decimal Inch) | 0.122047 |
| Series | KTB-S |
| Tool Block/Toolholder Style | KTKTB |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 2.9528 |
| Maximum Workpiece Diameter (mm) | 75 |
| Cutting Height (mm) | 21.40 |
| Cutting Height (Decimal Inch) | 0.8425 |
| Complete Insert Compatibility | TKN 3; TKN 3-P; TKR/L 3; TKR/L 3-P |
| Complete Tool Block/Toolholder Style Compatibility | KTKTB 16-26; KTKTB 20-26 |
| Manufacturers Catalog Number | KTKB263S |
| Insert Type | TKN |
| Type | Cut-Off Blade |
