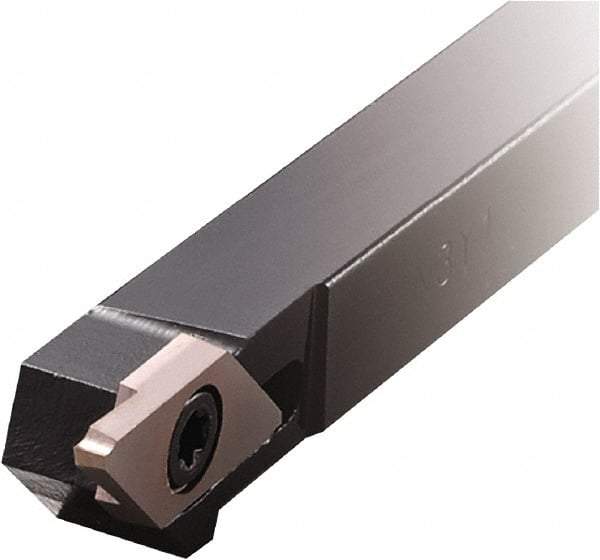

Kyocera - KTKFL, Left Hand Cut, TKF 16R/L... Insert, Indexable Cutoff Toolholder - 8mm Max Depth of Cut, 12mm Shank Width, 12mm Shank Height, 120mm OAL
Item #: 50446475
Brand: Kyocera
Model #: 8835026
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Series | KTKF |
| Toolholder Style | KTKFL |
| Insert Compatibility | TKF 16R/L... |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Insert Holding Method | Screw |
| Through Coolant | No |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Height (mm) | 12.00 |
| Head Height (Decimal Inch) | 0.4724 |
| Height to Shank Top (mm) | 12.00 |
| Height to Shank Top (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility | TKF16R/L 150-NB; TKF16R/L 150-NB-20DR; TKF16R/L 150-S; TKF16R/L 150-S-16DR; TKF16R/L 150-T; TKF16R/L 150-T-16DR; TKF16R/L 200-NB; TKF16R/L 200-NB-20DR; TKF16R/L 200-S; TKF16R/L 200-S-16DR; TKF16R/L 200-T; TKF16R/L 200-T 16DR; TKFR/L 250-AS |
