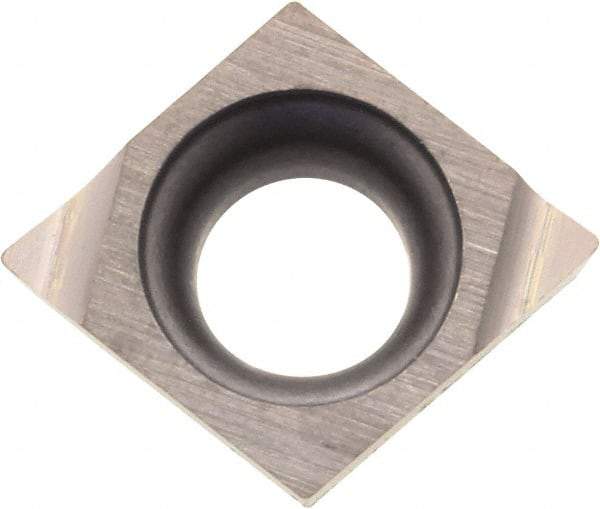

Kyocera - CCET141105 F Grade PV720 Cermet Turning Insert - TiCN (Megacoat Nano) Finish, 80° Diamond, 4.2926mm Inscr Circle, 1.8034mm Thick, 0.2032mm Corner Radius
Item #: 50442920
Brand: Kyocera
Model #: 8842994
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCET |
| Insert Size | 141105 |
| Material | Cermet |
| Inscribed Circle (mm) | 4.29 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Thickness (Decimal Inch) | 0.0710 |
| Thickness (mm) | 1.80 |
| Corner Radius (mm) | 0.2032 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | PV720 |
| Coating | TiCN (Megacoat Nano) |
| Material Grade | Micrograin |
| Chip Breaker | F |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | CCET040102ML-F |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCET141105MLF PV720 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
