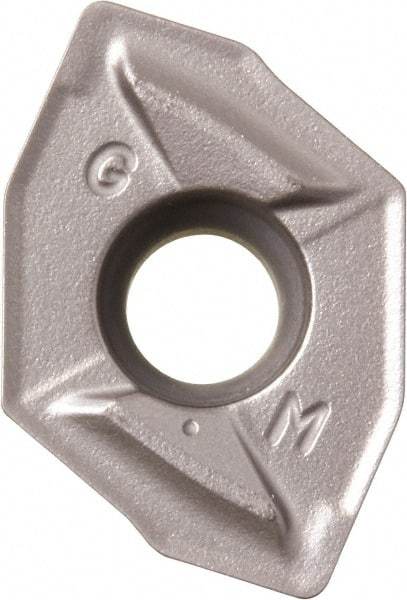

Kyocera - ZXMT30203 I Grade PR1230 Carbide Indexable Drill Insert - Megacoat Finish, Octagon
Item #: 50437854
Brand: Kyocera
Model #: 8832086
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
MEGACOAT is a high strength super micro-grain substrate designed for superior hardness, toughness and heat resistance. It offers good surface smoothness and is ideal for machining steel and stainless steel.
| Product Specifications | |
|---|---|
| Insert Style | ZXMT |
| Insert Size | 30203 |
| Material | Carbide |
| Manufacturer's Grade | PR1230 |
| Thickness (mm) | 2.30 |
| Thickness (Decimal Inch) | 0.0906 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.011811 |
| Shape | Octagon |
| Width (Decimal Inch) | 0.1890 |
| Width (mm) | 4.80 |
| Length (mm) | 5.90 |
| Length (Decimal Inch) | 0.2323 |
| Hole Diameter (mm) | 2.40 |
| Hole Diameter (Decimal Inch) | 0.0945 |
| Relief Angle | 7 |
| Coating | Megacoat |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | I |
