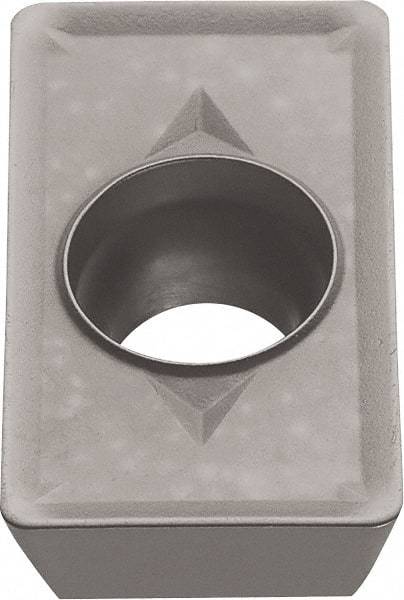

Kyocera - NEMT16T308 DH Grade PR1225 Carbide Milling Insert - Megacoat Finish, 3.97mm Thick, 0.8mm Corner Radius
Item #: 50430313
Brand: Kyocera
Model #: 8833950
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NEMT |
| Insert Size | 16T308 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Length (mm) | 16.20 |
| Length (Decimal Inch) | 0.6378 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 20.000 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | DH |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | NEMT16T308ER-DH |
