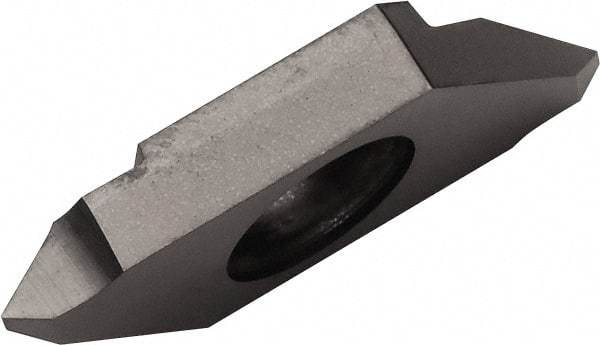

Kyocera - TKFT12 Grade PR1225, External ISO, Partial Profile 60° & UN Threading Insert - 0.2 to 0.6mm & 64 to 48 TPI Ext Pitch, Right Hand Insert, Megacoat Finish, Carbide
Item #: 50428853
Brand: Kyocera
Model #: 8836139
Exact Tooling IR#: 04
Features and Benefits
MEGACOAT is a high strength super micro-grain substrate designed for superior hardness, toughness and heat resistance. It offers good surface smoothness and is ideal for machining steel and stainless steel.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TKFT |
| Insert Size | 12 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | ISO; Partial Profile 60 Degrees; UN |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| External Pitch/TPI | 0.2-0.6 mm; 64-48 TPI |
| Coating | Megacoat |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | TKFT12RA6000 PR1225 |
| Corner Radius (Decimal Inch) | 0.05 |
| Width of Cutting Tip (mm) | 2.50 |
| Width of Cutting Tip (Decimal Inch) | 0.0984 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Series | TKFT |
| Included Angle of Threading Tip | 60 |
| Tip to Top of Insert (mm) | 8.70 |
| Tip to Top of Insert (Decimal Inch) | 0.3425 |
| Manufacturers Catalog Number | TKFT12RA6000 |
