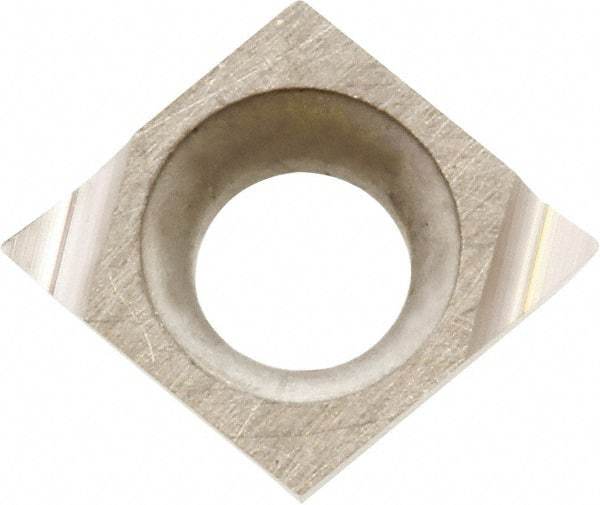

Kyocera - CCGT110905 F Grade PR930 Carbide Turning Insert - TiCN Finish, 80° Diamond, 3.5052mm Inscr Circle, 1.397mm Thick, 0.2032mm Corner Radius
Item #: 50428804
Brand: Kyocera
Model #: 8806210
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 110905 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.51 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Thickness (Decimal Inch) | 0.0550 |
| Thickness (mm) | 1.40 |
| Corner Radius (mm) | 0.2032 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Material Grade | Super Micrograin |
| Chip Breaker | F |
| Hole Diameter (mm) | 1.91 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| ISO Number | CCGT030102L-F |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCGT110905LF PR930 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
