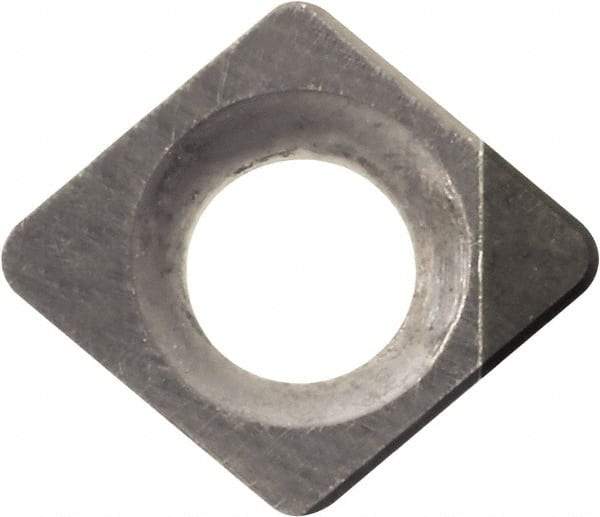

Kyocera - CCMW14111 Grade KBN10M CBN Turning Insert - Megacoat Finish, 80° Diamond, 4.2926mm Inscr Circle, 1.8034mm Thick, 1/64" Corner Radius
Item #: 50425495
Brand: Kyocera
Model #: 8826766
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CCMW |
| Insert Size | 14111 |
| Material | CBN |
| Inscribed Circle (mm) | 4.29 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Thickness (Decimal Inch) | 0.0710 |
| Thickness (mm) | 1.80 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KBN10M |
| Coating | Megacoat |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | CCMW040104T00815SE |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCMW14111T00315SE |
| Primary Workpiece Material | H |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
