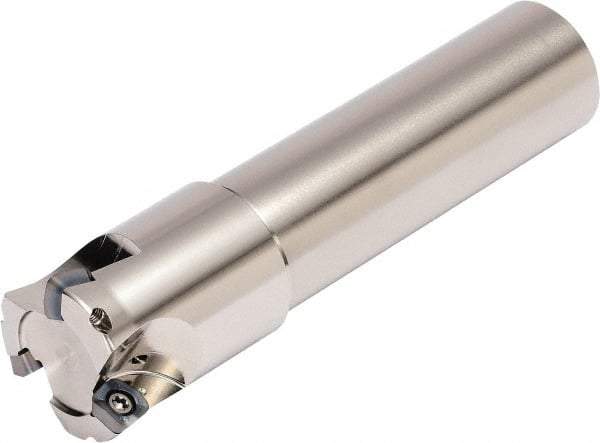

Kyocera - 25.4mm Cut Diam, 1.4986mm Max Depth, 1" Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, SOMT 100420ER-.. Insert, MFH Toolholder, Through Coolant
Item #: 50421981
Brand: Kyocera
Model #: 8606396
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.4000 |
| Cutting Diameter (Decimal Inch) | 1.000000 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 2 |
| Insert Style | SOMT 100420ER-.. |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Maximum RPM | 17000 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 4.7500 |
| Overall Length (Decimal Inch) | 8.0000 |
| Manufacturers Catalog Number | MFH 1000-S100-10-2T-8 |
