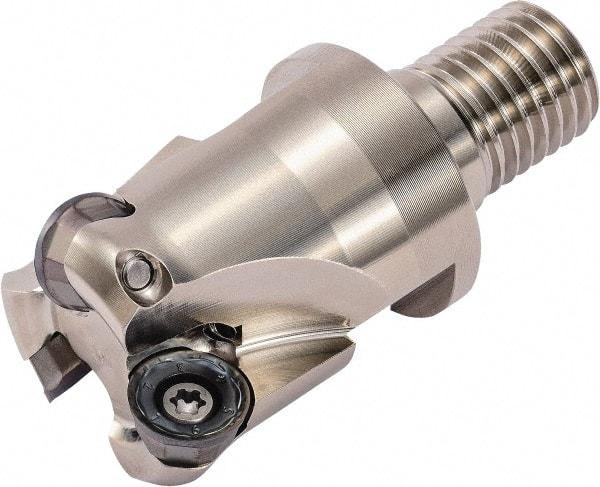

Kyocera - 20mm Cutting Diam, 5mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RPGT 10, RPMT 10 Insert, MRX Toolholder
Item #: 50421700
Brand: Kyocera
Model #: 8839463
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.787402 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Number of Cutter Inserts | 2 |
| Insert Style | RPGT 10; RPMT 10 |
| Toolholder Style | MRX |
| Series | RAD-6 |
| Overall Length (mm) | 49.00 |
| Overall Length (Decimal Inch) | 1.9291 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Modular Connection Size | M10 |
| ISO Number | MRX20-M10-10-2T |
