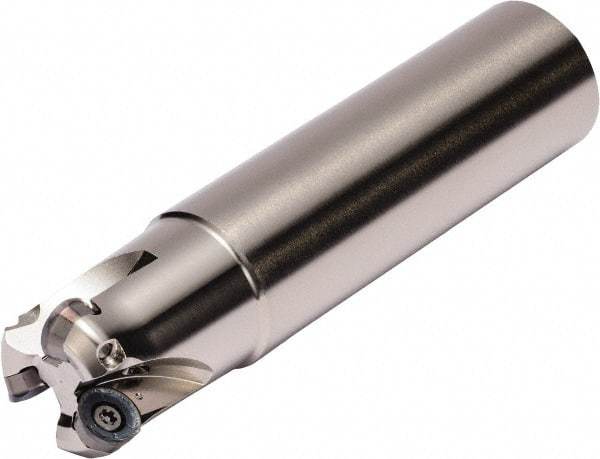

Kyocera - 20mm Cutting Diam, 20mm Shank Diam, 5mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RPGT 10, RPMT 10 Insert, MRX Toolholder
Item #: 50420926
Brand: Kyocera
Model #: 8839153
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.787402 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.787402 |
| Number of Cutter Inserts | 2 |
| Insert Style | RPGT 10; RPMT 10 |
| Toolholder Style | MRX |
| Series | RAD-6 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| ISO Number | MRX20-S20-10-2T |
