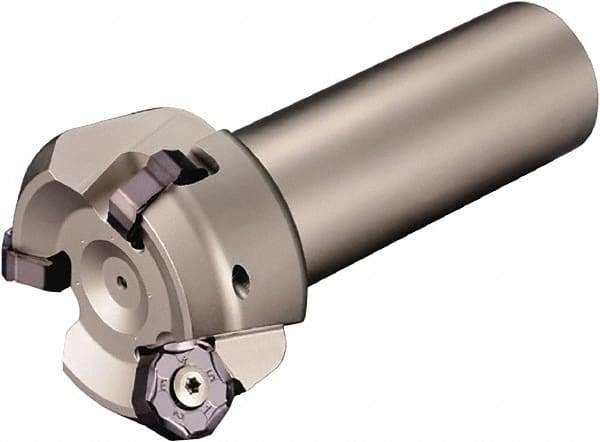

Kyocera - 45° Lead Angle, 2.31" Max Cut Diam, 2" Min Cut Diam, 0.23" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, PNEU 1205, PNMU 1205 Insert Style, 3.6" Overall Length, Straight Shank
Item #: 50420389
Brand: Kyocera
Model #: 8607054
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 2.00 |
| Maximum Cutting Diameter (Decimal Inch) | 2.31 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.25 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 3.6000 |
| Insert Style | PNEU 1205; PNMU 1205 |
| Series | MFPN |
| Maximum Depth of Cut (Decimal Inch) | 0.2300 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | MFPN |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.1800 |
| Weldon Flat | Yes |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -12 |
| Shank Length (Decimal Inch) | 2.4200 |
| Complete Insert Compatibility | PNEU 1205ANER-GL; PNEU 1205ANER-W; PNMU 1205ANER-GH; PNMU 1205ANER-GM; PNMU 1205ANER-SM |
