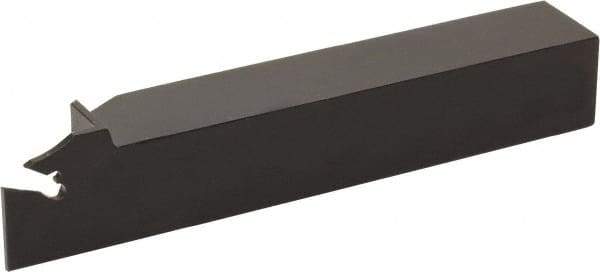

Kyocera - KTKHR, Right Hand Cut, 1.55" Max Depth of Cut, 3.1" Max Workpc Diam, TKN 4.8, TKN 5, TKR/L 5 Insert, Indexable Cutoff Toolholder - 6" OAL, 1" Shank Height, 4.44" Shank Length
Item #: 50417104
Brand: Kyocera
Model #: 8801669
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5500 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1000 |
| Series | KTKH |
| Toolholder Style | KTKHR |
| Insert Compatibility | TKN 4.8; TKN 5; TKR/L 5 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Minimum Insert Width (Decimal Inch) | 0.1890 |
| Maximum Insert Width (Decimal Inch) | 0.2010 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Height (Decimal Inch) | 1.2000 |
| Head Length (Decimal Inch) | 1.5600 |
| Shank Length (Decimal Inch) | 4.4400 |
| Height to Shank Top (Decimal Inch) | 1.0000 |
| Complete Insert Compatibility | TKN 1.6; TKN 1.6-P; TKN 2; TKN 2.4; TKN 2-P; TKN 3; TKN 3-P; TKN 4; TKN 4.8; TKN 5; TKN 6; TKN 8; TKN 9; TKR/L 1.6; TKR/L 1.6-P; TKR/L 2; TKR/L 2.4; TKR/L 2-P; TKR/L 3; TKR/L 3-P; TKR/L 4; TKR/L 5 |
