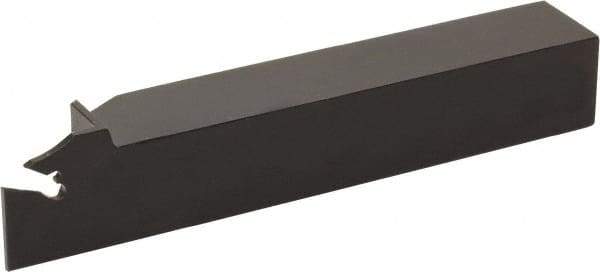

Kyocera - KTKHR, Right Hand Cut, 26.5mm Max Depth of Cut, 55mm Max Workpc Diam, TKN 3(-P), TKR/L 3(-P) Insert, Indexable Cutoff Toolholder - 150mm OAL, 25mm Shank Height, 118.5mm Shank Length
Item #: 50394923
Brand: Kyocera
Model #: 8806434
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 26.50 |
| Maximum Workpiece Diameter (mm) | 55.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.1654 |
| Series | KTKH |
| Toolholder Style | KTKHR |
| Insert Compatibility | TKN 3(-P); TKR/L 3(-P) |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Insert Width (mm) | 3.10 |
| Insert Width (Decimal Inch) | 0.1220 |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Height (mm) | 30.00 |
| Head Height (Decimal Inch) | 1.1811 |
| Head Length (mm) | 31.50 |
| Head Length (Decimal Inch) | 1.2402 |
| Shank Length (mm) | 118.50 |
| Shank Length (Decimal Inch) | 4.6654 |
| Height to Shank Top (mm) | 25.00 |
| Height to Shank Top (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | TKN 1.6; TKN 1.6-P; TKN 2; TKN 2.4; TKN 2-P; TKN 3; TKN 3-P; TKN 4; TKN 4.8; TKN 5; TKN 6; TKN 8; TKN 9; TKR/L 1.6; TKR/L 1.6-P; TKR/L 2; TKR/L 2.4; TKR/L 2-P; TKR/L 3; TKR/L 3-P; TKR/L 4; TKR/L 5 |
