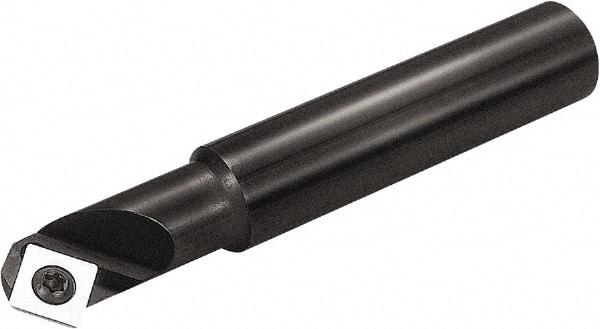

Kyocera - 45° Lead Angle, 42mm Max Cut Diam, 27mm Min Cut Diam, 8.6mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, SEKW 421, SEKW 422, SEMT 421 Insert Style, 120mm Overall Length, Straight Shank
Item #: 50392653
Brand: Kyocera
Model #: 8812462
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 43.00 |
| Cutting Diameter (Decimal Inch) | 1.692913 |
| Minimum Cutting Diameter (Decimal Inch) | 1.062992 |
| Minimum Cutting Diameter (mm) | 27.00 |
| Maximum Cutting Diameter (mm) | 42.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.653543 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.259843 |
| Lead Angle | 45 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Style | SEKW 421; SEKW 422; SEMT 421 |
| Series | MCSE |
| Maximum Depth of Cut (Decimal Inch) | 0.3386 |
| Maximum Depth of Cut (mm) | 8.60 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | MCSE |
| Number of Flutes | 2 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Weldon Flat | No |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 8 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Complete Insert Compatibility | SEKW 421FN; SEKW 421TN; SEKW 422FN; SEKW 422TN; SEMT 421C |
