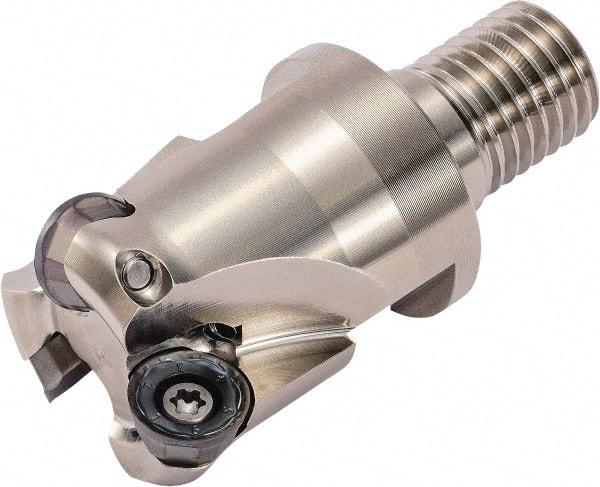

Kyocera - 25mm Cutting Diam, 5mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RPGT 10, RPMT 10 Insert, MRX Toolholder
Item #: 50391036
Brand: Kyocera
Model #: 8839464
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.984252 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 3 |
| Insert Style | RPGT 10; RPMT 10 |
| Toolholder Style | MRX |
| Series | RAD-6 |
| Overall Length (mm) | 57.00 |
| Overall Length (Decimal Inch) | 2.2441 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Modular Connection Size | M12 |
| ISO Number | MRX25-M12-10-3T |
